(N)YFGY Cable
Minimum Order Quantity: 2KM;
Payment Type: T/T, L/C, MoneyGram, Credit Card, Western Union, Cash;
Shipping: Shipping fee and delivery date to be negotiated. Chat with supplier now for more details;
Secure Payments: Every payment you make is secured with strict SSL encryption and PCI DSS data protection protocols;
Delivery Terms: FOB, CFR, EXW, FAS, DDP；
Payment Currency: USD, EUR, CAD, AUD, GBP, CNY
Share:
Product Description

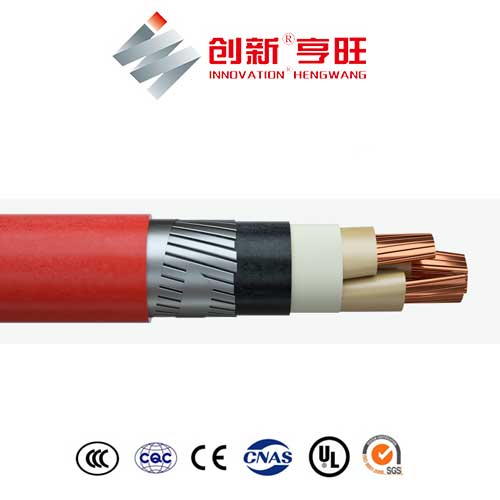

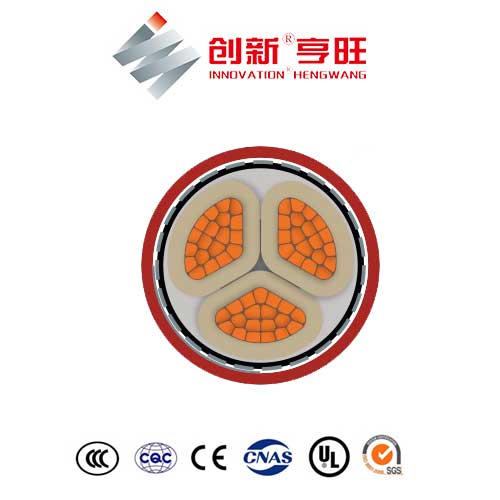

(N)YFGY Cable | Three-Core PVC Insulated Cable with Flat Wire Amour
(N)YFGY Cable Application
To be laid directly in ground, in water, outdoors, indoors and in cable ducts if increased mechanical protection is required or if greater tensile stresses are to be expected during installation and operation.

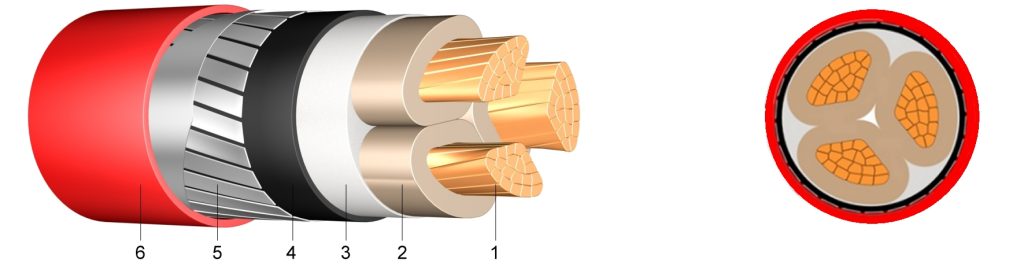

(N)YFGY Cable Construction
1…..stranded bare copper
2…..core insulation of polyvinylchloride (PVC-DIV4)
3…..rubber core covering
4…..inner sheath of polyvinylchloride (PVC-DMV5)
5…..armour of galvanised flat steel wires and counter helix
6…..outer sheath of polyvinylchloride (PVC), red
(N)YFGY Cable Standards
DIN VDE 0271 DIN VDE 0276-603 DIN EN 60228 class 2 (construction)
(N)YFGY Cable Technical data
| Nominal voltage Uo/U | [V] | 3600 / 6000 Volt | |
| Test voltage | [V]AC | 11000 | |
| Temperature range | in motion | – 5°C till +70°C | |
| fixed | -20°C till +70°C | ||
| Operating temperature | short circuit | °C | 160 |
| Short circuit time | max. | [sec] | 5 |
| Bending radius | in motion | x diameter | 15 |
| Flammability | standard | EN 60332-1-2 |
(N)YFGY Cable Specifications
| Number of cores and nominal cross section mm² | Copper figure kg/km | Overall diameter appr. mm | Weight appr. kg / km | Current carrying capacity ground A | Current carrying capacity air A |
| 3 x 50 SM | 1.440,00 | 41 | 3.520 | 175 | 165 |
| 3 x 70 SM | 2.016,00 | 44 | 4.345 | 220 | 205 |
| 3 x 95 SM | 2.736,00 | 47 | 5.330 | 260 | 250 |
| 3 x 120 SM | 3.456,00 | 49 | 6.220 | 295 | 285 |
| 3 x 150 SM | 4.320,00 | 52 | 7.120 | 335 | 325 |
| 3 x 185 SM | 5.328,00 | 57 | 8.625 | 370 | 380 |
| 3 x 240 SM | 6.912,00 | 59 | 9.885 | 425 | 430 |
