Product Description

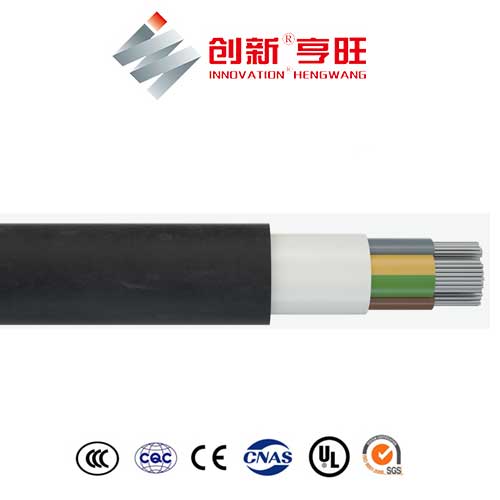

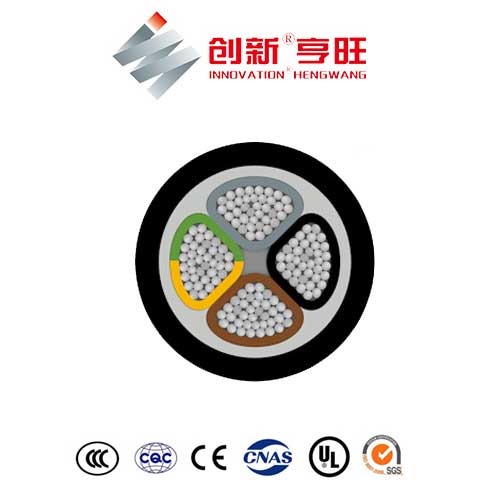

NAYY Cable | PVC Insulated Cable with Aluminium Conductor
NAYY Cable Application

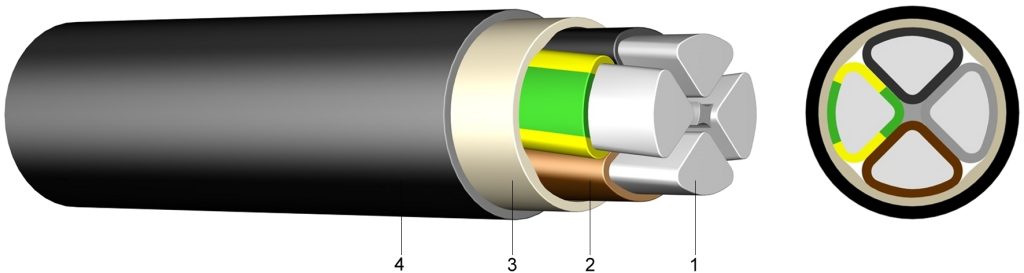

NAYY Cable Construction
2…..core insulation of polyvinylchloride (PVC)
3…..PVC inner sheath (FM)
4…..outer sheath of polyvinylchloride (PVC), black, UV-resistant
NAYY Cable Information
NAYY Cable Standards
NAYY Cable Technical data
| Nominal voltage Uo/U | [V] | 600 / 1000 Volt | |
| Test voltage | [V]AC | 4000 | |
| Temperature range | in motion | – 5°C till +70°C | |
| fixed | -20°C till +70°C | ||
| Bending radius | single-core style | x diameter | 15 |
| multi-core style | x diameter | 12 | |
| Flammability | standard | EN 60332-1-2 |
NAYY Cable Specifications
| Number of cores and nominal cross section mm² | Aluminium figure kg/km | Overall diameter appr. mm | Weight appr. kg / km | Current carrying capacity ground A | Current carrying capacity air A |
| 1 x 16 RE | 49 | 11 | 161 | * | * |
| 1 x 25 RM | 74 | 11 | 174 | 106 | 87 |
| 1 x 35 RM | 103 | 12 | 209 | 127 | 107 |
| 1 x 50 RM | 147 | 14 | 282 | 151 | 131 |
| 1 x 70 RM | 206 | 16 | 363 | 185 | 166 |
| 1 x 95 RM | 279 | 18 | 520 | 222 | 205 |
| 1 x 120 RM | 353 | 19 | 557 | 253 | 239 |
| 1 x 150 RM | 441 | 21 | 674 | 284 | 273 |
| 1 x 185 RM | 544 | 24 | 826 | 322 | 317 |
| 1 x 240 RM | 706 | 26 | 1.052 | 375 | 378 |
| 1 x 300 RM | 882 | 29 | 1.282 | 425 | 437 |
| 1 x 400 RM | 1.2 | 32 | 1.598 | 487 | 513 |
| 1 x 500 RM | 1.51 | 36 | 2.022 | 558 | 600 |
| 1 x 630 RM | 1.9 | 40 | 2.2 | 635 | 701 |
| Number of cores and nominal cross section mm² | Aluminium figure kg/km | Overall diameter appr. mm | Weight appr. kg / km | Current carrying capacity ground A | Current carrying capacity air A |
| 4 x 25 RE | 294 | 27 | 887 | 102 | 82 |
| 4 x 35 RE | 412 | 29 | 796 | 123 | 100 |
| 4 x 50 SE | 588 | 31 | 1.017 | 144 | 119 |
| 4 x 70 SE | 823 | 34 | 1.312 | 179 | 152 |
| 4 x 95 SE | 1.14 | 40 | 1.698 | 215 | 186 |
| 4 x 120 SE | 1.44 | 42 | 2.459 | 245 | 216 |
| 4 x 150 SE | 1.764 | 51 | 2.594 | 275 | 246 |
| 4 x 185 SE | 2.176 | 54 | 3.777 | 313 | 285 |
| 4 x 240 SE | 2.822 | 60 | 4.106 | 364 | 338 |
| 4 x 35 RM | 412 | 29 | 796 | 123 | 100 |
| 4 x 50 SM | 588 | 31 | 1.017 | 144 | 119 |
| 4 x 70 SM | 823 | 34 | 1.312 | 179 | 152 |
| 4 x 95 SM | 1.14 | 40 | 1.698 | 215 | 186 |
| 4 x 120 SM | 1.44 | 42 | 2.459 | 245 | 216 |
| 4 x 150 SM | 1.764 | 51 | 2.594 | 275 | 246 |
| 4 x 185 SM | 2.176 | 54 | 3.777 | 313 | 285 |
| 4 x 240 SM | 2.822 | 60 | 4.106 | 364 | 338 |
| 4 x 300 SM | 3.528 | 63 | 5.8 | 419 | 400 |
| 5 x 16 RM | 245 | 25 | 858 | ||
| 5 x 25 RM | 383 | 29 | 1.214 | 102 | 81 |
| 5 x 35 RM | 536 | 32 | 1.453 | 121 | 99 |
| 5 x 50 SM | 781 | 35 | 1.855 | 144 | 119 |
| 5 x 70 SM | 1.094 | 40 | 2.351 | 179 | 152 |
| 5 x 95 SM | 1.484 | 45 | 3.071 | 215 | 186 |
| 5 x 120 SM | 1.875 | 49 | 3.631 | 245 | 216 |
| 5 x 150 RM | 2.218 | 58 | 4.8 | 275 | 246 |
| 5 x 185 RM | 2.736 | 62 | 5.445 | 313 | 285 |
| 5 x 240 RM | 3.53 | 71 | 6.95 | 364 | 338 |
