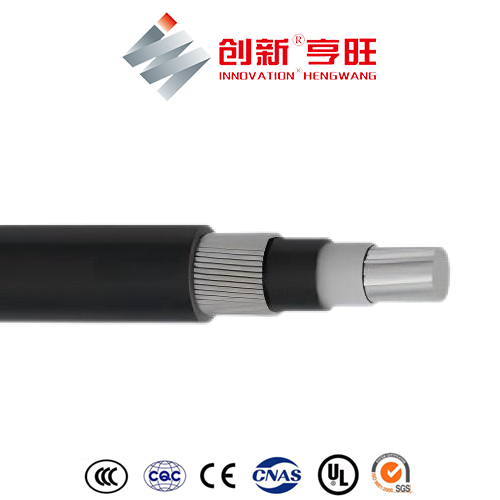

Low Voltage Cables/LV Power Cables

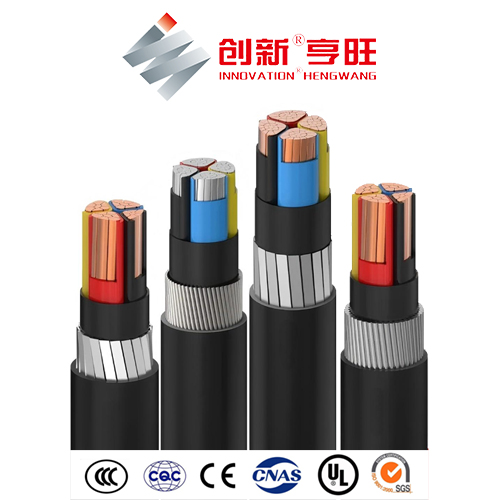

Low Voltage Cables/LV Power Cables - Image 2

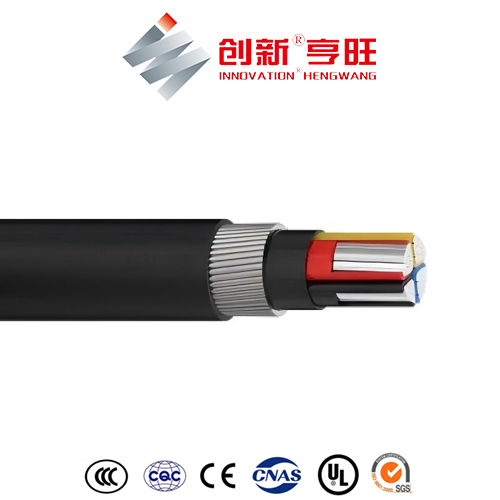

Low Voltage Cables/LV Power Cables - Image 3

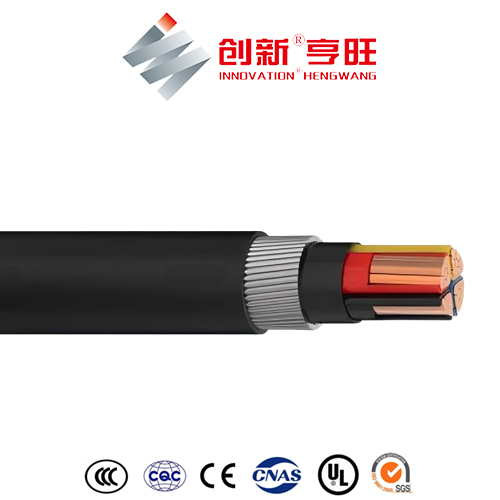

Low Voltage Cables/LV Power Cables - Image 4

Low Voltage Cables/LV Power Cables

Category: Tags: ,

Minimum Order Quantity: 2KM;
Payment Type: T/T, L/C, MoneyGram, Credit Card, Western Union, Cash;
Shipping: Shipping fee and delivery date to be negotiated. Chat with supplier now for more details;
Secure Payments: Every payment you make is secured with strict SSL encryption and PCI DSS data protection protocols;
Delivery Terms: FOB, CFR, EXW, FAS, DDP；
Payment Currency: USD, EUR, CAD, AUD, GBP, CNY

Quality Certification (1)
Quality Certification (2)
Quality Certification (3)
Quality Certification (4)
Quality Certification (5)
Quality Certification (6)
Quality Certification (7)
Quality Certification (8)
Quality Certification (9)
Quality Certification (10)
Quality Certification (11)
Quality Certification (12)
Data sheet
Send Email

Share:

Description
Case Video
Certificate
Factory Tour
Advantage
FAQs
Form

Product Description

Low Voltage Cables/LV Power Cables

Low Voltage Cables Introduction

Low Voltage Cables come in a variety of sizes, materials, and types, each particularly adapted to its uses. Cables consist of three major components: conductors, insulation, and protective outer sheath. The makeup of individual cables varies according to application.

The construction and material are determined by three main factors
Working voltage, determining the thickness of the insulationCurrent-carrying capacity, determining the cross-sectional size of the conductor(s)Environmental conditions such as temperature, water, chemical or sunlight exposure, and mechanical impact, determining the form and composition of the outer sheath of cable.
LV cables use stranded copper or aluminum conductors. although small conductor of cables may use solid conductors. The overall assembly may be round or flat. Non-conducting filler strands may be added to the assembly to maintain its shape. Special purpose LV cables for overhead or vertical use may have additional elements such as steel structural supports. Some LV cables for outdoor overhead use may have no outer sheath.

Low Voltage Cables Technical Information

The construction and material are determined by three main factors

  • Working voltage, determining the thickness of the insulation
  • Current-carrying capacity, determining the cross-sectional size of the conductor(s)
  • Environmental conditions such as temperature, water, chemical or sunlight exposure, and mechanical impact, determining the form and composition of the outer sheath of cable.

LV cables use stranded copper or aluminum conductors. although small conductor of cables may use solid conductors. The overall assembly may be round or flat. Non-conducting filler strands may be added to the assembly to maintain its shape. Special purpose LV cables for overhead or vertical use may have additional elements such as steel structural supports. Some LV cables for outdoor overhead use may have no outer sheath.

Low Voltage Cables Technical Information
Type Sizes voltage Rating
PVC / XLPE insulated cables conforming to IS:1554-I

/ IS:7098-I, BS:6346, IEC:60502, BS:5467, BS:6724 and

Customer specific requirements

 Single Core 1.5 to 1000 sq. mm
MuLVi core 1.5 to 630 sq. mm		 Upto1.1 kV
Low Voltage Cables Construction
Conductor Stranded / Solid / Circular / shaped as per IS:8130, IEC 60228, BS 6360
Material Aluminum / Copper
Insulation PVC /XLPE/HR PVC / Zero Halogen
Inner sheath PVC /HR PVC /FR/FRLS PVC / Zero Halogen as per IS 5831, IEC 60502, BS 7655.
Armour G.S STEEL ROUND WIRE /G.S. STEEL FORMED WIRE (STRIP) / G.S. STEEL TAPE/ALUMINIUM ROUND WIRE / ALUMINIUM FORMED WIRE (STRIP)/ ALUMINIUM TAPE as per IS 3975, IEC 60502 P-1.
Outer sheath PVC /HR PVC /FR/FRLS PVC / Zero Halogen as per IS 5831, IEC 60502, BS 7655.
Low Voltage Cables Application

LV cable is used widely in many industries ranging from industries involved in water, renewable energy, distribution and power networks, nuclear and thermal power stations, airports, marine, defence, telecommunications, windmills, building,mining, offshore, applications,ship wiring, railways, automation, audio-visual and manufacturing industries, these cables can be suitable for a huge amount of applications.

Low Voltage Cables Features
  • BIS certified IS: 1554Pt-1, IS: 7098Pt-1 product which is a best third party guarantee in the country.
  • Available in wide range of operating temperature ranging from -40°C to 90°C.
  • The copper/Aluminum conductor provides excellent corrosion resistance, even at elevated temperatures.
  • Best suited for fatigue damages caused due to vibration or loading cycles.
  • Exhibits excellent electrical, flame, and heat resistance.
  • The cables are also exceptionally resistant to grease, mineral oils and ozone.
PVC insulated power Cable models, names, and laying occasions
Model Name Laying Occasion
Copper core Aluminum core
VV VLV PVC insulated and sheathed power cable Laid indoors, and in tunnels, pipelines, cable trenches, and flammable and severe corrosion places, and can not bear external mechanical forces.
VY VLY PVC insulated PE sheathed power cable Laid indoors, and in pipelines, cable trenches and severe corrosion places, and cannot bear external mechanical forces
VV22 VLV22 PVC insulated steel tape armored PVC sheathed power cable Laid indoors, and in cable trenches, underground severe corrosion places, and cannot bear tension.
VV23 VLV23 PVC insulated steel tape armored PE Laid indoors, and in cable trenches and underground severe corrosion place, and cannot bear tension.
VV32 VLV32 PVC insulated thin steel wire armored PVC sheathed power cable Laid under ground and in shafts, water and severe corrosion places, and cannot bear high tension.
VV33 VLV33 PVC insulated thin steel wire armored PVC sheathed power cable Laid under ground and in shafts, water and severe corrosion places, and can bear high tension.
VV42 VLV42 PVC insulated thick steel wire armored PVC sheathed power cable Laid under ground and in shafts and severe corrosion places, and can bear high tension.
VV43 VLV43 PVC insulated thick steel wire armored PE sheathed power cable Laid under ground and in shafts and severe corrosion places, and can bear high tension.
PVC Insulated Power Cable Range of production
Number of cores
Cross sectional Voltage level area (mm2)		 0.6/1 1.8/3
Single core 1 1.5-100 10-1000
Twin  core 2 1.5-240 10-240
Triple core 3 1.5-300 10-300
Three big cores and one small core 3+1 2.5-300 10-300
Fourth core 4 2.5-300 10-300
Fifth core 5 2.5-300 10-300
Three big cores and two small cores 3+2 2.5-300 10-300
Four big cores and one small core 4+1 2.5-300 10-300
XLPE insulated power Cable models, names, and laying occasions
Model Name Laying Occasion
Copper core Aluminum core
YJV YJLV XLPE insulated PVC sheathed power cable Laid indoors, and in tunnels and pipelines
YJY YJLY XLPE insulated PE sheathed power cable
YJV22 YJLV22 XLPE insulated steel tape armored PVC sheathed power cable Adapt for buried laying, not suitable for in-pipe laying
YJV23 YJLV23 XLPE insulated steel tape armored PE sheathed power cable
YJV32 YJLV32 XLPE insulated thin steel wire armored PVC sheathed power cable Laid on riverbeds of rivers or shallow water as connecting  lines  across  rivers  or  petroleum/natural gas platforms, also used in land high drop areas.
YJV33 YJLV33 XLPE insulated thin steel wire armored PVC sheathed power cable
YJV42 YJLV42 XLPE insulated thick steel wire armored PVC sheathed power cable
YJV43 YJLV43 XLPE insulated thick steel wire armored PE sheathed power cable
XLPE insulated power cable Range of production
Number of cores
Cross sectional area (mm2) 		 0.6/1 1.8/3
Single core 1 1.5-1000 10-1000
Twin  core 2 1.5-240 10-240
Triple core 3 1.5-300 10-300
Three big cores and two small cores 3+2 2.5-300 10-300
0.6/1KV PVC/PVC Power cable (non-armored) VV, VLV


Conductor dimensions (mm2)



Insulation thickness (mm)

 Nonmetallic sheath, unarmored cable
Sheath thickness Outer diameter (approximate) Cable weight (Kg/km)
mm mm Copper core Aluminum core
1C 2C 3C 4C 5C 1C 2C 3C 4C 5C 1C 2C 3C 4C 5C 1C 2C 3C 4C 5C
1.5 0.8 1.4 1.8 1.8 1.8 1.8 5.8 10.4 10.8 11.6 12.4 49 131 152 184 215 40 113 124 147 168
2.5 0.8 1.4 1.8 1.8 1.8 1.8 6.2 11.2 11.7 12.6 13.5 62 159 191 234 277 47 128 144 172 199
4 1.0 1.4 1.8 1.8 1.8 1.8 7.1 12.9 13.6 14.7 15.9 86 211 264 330 391 62 161 189 231 266
6 1.0 1.4 1.8 1.8 1.8 1.8 7.6 13.9 14.7 15.9 17.3 110 268 334 423 505 73 193 221 273 318
10 1.0 1.4 1.8 1.8 1.8 1.8 8.7 16.2 17.1 18.6 20.3 158 380 492 627 754 96 254 303 375 439
16 1.0 1.4 1.8 1.8 1.8 1.8 9.8 18.4 19.5 21.3 23.3 224 533 714 905 1094 124 331 412 502 590
25 1.2 1.4 1.8 1.8 1.8 1.8 11.2 21.2 22.5 24.7 27.1 325 759 1019 1307 1592 169 445 547 678 806
35 1.2 1.4 1.8 1.8 1.8 1.9 12.4 23.6 21.4 27.6 30.5 429 974 1313 1699 2098 211 533 652 818 997
50 1.4 1.4 1.8 1.8 1.9 2.1 14.0 26.8 28.0 31.6 35.2 590 1265 1781 2354 2929 278 636 837 1096 1355
70 1.4 1.4 1.9 2.0 2.1 2.2 15.6 23.4 27.2 31.5 37.9 791 1650 2393 3155 3942 353 770 1071 1394 1740
95 1.6 1.5 2.0 2.1 2.2 2.4 17.9 27.2 31.4 36.6 43.0 1062 2206 3205 4239 5295 467 1011 1412 1849 2307
120 1.6 1.5 2.1 2.2 2.4 2.5 19.3 29.8 34.3 39.2 46.9 1306 2727 3966 5244 6549 555 1217 1701 2224 2774
150 1.8 1.6 2.2 2.3 2.5 2.7 21.4 32.6 37.9 43.1 52.4 1625 3374 4924 6508 8155 686 1486 2093 2733 3437
185 2.0 1.7 2.4 2.5 2.7 2.9 23.7 38.6 42.3 48.2 60.7 1998 4185 6062 8022 10074 840 1857 2571 3366 4254
240 2.2 1.8 2.6 2.7 2.9 3.1 26.5 43.8 49.7 55.7 65.8 2565 5371 7825 10335 12911 1062 2351 3296 4295 5361
300 2.4 1.9 2.7 2.9 3.1 3.3 29.3 48.8 52.8 62.3 71.4 3186 6641 9696 12859 16023 1306 2854 4016 5285 6557
400 2.6 2.0 3.1 3.4 3.7 33.0 59.8 71.2 83.1 4191 12739 16940 21124 1684 5165 6842 8501
500 2.8 2.1 3.4 3.4 36.4 74.2 82.2 86.5 5198 15898 20937 2064 6431 8314
630 2.8 2.2 40.1 77.0 85.3 6464 2515
800 2.8 2.3 45.2 8126 3112
1000 3.0 2.5 50.5 10120 3853
0.6/1KV PVC/PVC Power cable (non-armored) VV, VLV


Conductor dimensions (mm2)



Insulation thickness (mm)

 Nonmetallic sheath, unarmored cable
Sheath thickness Outer diameter (approximate) Cable weight (Kg/km)
mm mm Copper core Aluminum core
Phase line Null line Phase line Null line 3+1C 3+2C 4+1C 3+1C 3+2C 4+1C 3+1C 3+2C 4+1C 3+1C 3+2C 4+1C
2.5 1.5 0.8 0.8 1.8 1.8 1.8 12.3 13.1 13.3 236 271 276 — — —
4 2.5 1.0 0.8 1.8 1.8 1.8 14.2 14.9 15.4 307 354 305 217 248 253
6 4.0 1.0 1.0 1.8 1.8 1.8 15.6 16.7 17.0 400 467 335 263 305 308
10 6.0 1.0 1.0 1.8 1.8 1.8 18.0 19.1 19.7 574 659 701 348 395 412
16 10.0 1.0 1.0 1.8 1.8 1.8 20.7 22.1 22.7 829 946 1018 464 518 552
25 16.0 1.2 1.0 1.8 1.8 1.8 23.9 25.6 26.3 1195 1379 1480 622 705 751
35 16.0 1.2 1.0 1.8 1.8 1.8 26.1 27.5 28.9 1484 1667 1869 728 818 894
50 25.0 1.4 1.2 1.9 1.9 2.0 30.0 31.8 33.5 2079 2359 2638 978 1100 1222
70 35.0 1.4 1.2 2.0 2.1 2.1 31.0 34.9 35.8 2789 3200 3565 1245 1436 1579
95 50.0 1.6 1.4 2.2 2.2 2.3 35.7 40.2 41.3 3778 4350 4821 1667 1924 2111
120 70.0 1.6 1.4 2.3 2.4 2.5 38.3 43.8 45.7 4725 5529 6050 2014 2377 2582
150 70.0 1.8 1.4 2.4 2.5 2.6 41.7 48.1 50.0 5680 6500 7318 2402 2780 3094
185 95.0 2.0 1.6 2.6 2.7 2.8 47.4 53.6 55.4 7098 8178 9095 2999 3481 3830
240 120.0 2.2 1.6 2.8 2.9 3.0 55.5 61.3 62.7 9108 10435 11651 3812 4382 4841
300 150.0 2.4 1.8 3.0 3.1 3.2 61.2 68.5 66.0 11320 12981 14434 4695 5410 5915
400 185.0 2.6 2.0 3.2 3.3 3.5 70.4 77.1 70.9 14757 16803 18818 6017 6897 7554
0.6/1KV PVC/PVC Power cable (steel wire armored) VV32, VLV32




Conductor dimensions (mm2)





nsulation thickness (mm)

 Armored wire cable
PVC bedding thickness Armored wire Outer diameter

Sheath thickness

 Outer diameter (approximate) Cable weight (approximate) (Kg/km) Cable weight (approximate) (Kg/km)
mm mm mm mm Copper core Aluminum core
2C 3C 4C 5C 2C 3C 4C 5C 2C 3C 4C 5C 2C 3C 4C 5C 2C 3C 4C 5C 2C 3C 4C 5C
1.5 0.8 1.0 1.0 1.0 1.0 0.8 0.8 0.8 0.8 1.8 1.8 1.8 1.8 14.6 15.0 15.8 16.6 351 390 449 477 332 362 412 431
2.5 0.8 1.0 1.0 1.0 1.0 0.8 0.8 0.8 0.8 1.8 1.8 1.8 1.8 15.4 15.9 16.8 17.7 396 447 523 562 365 400 461 484
4 1.0 1.0 1.0 1.0 1.0 0.8 1.25 1.25 1.25 1.8 1.8 1.8 1.8 17.1 18.7 19.8 21.0 492 681 785 887 442 607 685 762
6 1.0 1.0 1.0 1.0 1.0 1.25 1.25 1.25 1.25 1.8 1.8 1.8 1.8 19.0 19.8 21.0 22.4 698 788 915 1041 623 677 766 854
10 1.0 1.0 1.0 1.0 1.0 1.25 1.25 1.25 1.6 1.8 1.8 1.8 1.8 21.3 22.2 23.7 26.1 874 1012 1197 1519 748 823 945 1204
16 1.0 1.0 1.0 1.0 1.0 1.25 1.25 1.6 1.6 1.8 1.8 1.8 1.8 23.5 24.6 27.1 29.1 1091 1309 1701 1976 890 1007 1298 1473
25 1.2 1.0 1.0 1.0 1.0 1.6 1.6 1.6 1.6 1.8 1.8 1.8 1.9 27.0 28.3 30.5 33.1 1555 1856 2223 2639 1240 1384 1594 1852
35 1.2 1.0 1.0 1.0 1.0 1.6 1.6 1.6 2.0 1.8 1.8 1.9 2.0 29.4 30.9 33.6 37.3 1850 2279 2747 3531 1409 1619 1866 2430
50 1.4 1.0 1.0 1.2 1.2 1.6 1.6 2.0 2.0 1.9 2.0 2.1 2.2 32.8 34.7 39.0 42.4 2275 2872 3846 4624 1646 1928 2588 3051
70 1.4 1.0 1.2 1.2 1.2 2.0 2.0 2.0 2.0 2.0 2.1 2.2 2.3 37.0 34.4 38.7 45.1 3073 3681 4632 5702 2190 2357 2867 3495
95 1.6 1.2 1.2 1.2 1.4 2.0 2.0 2.5 2.5 2.2 2.2 2.4 2.6 42.0 38.6 45.4 52.2 3866 4656 6456 7940 2668 2859 4060 4945
120 1.6 1.2 1.2 1.4 1.4 2.0 2.0 2.5 2.5 2.3 2.3 2.6 2.7 45.0 41.5 48.4 56.1 4519 5543 7653 9415 3006 3273 4627 5632
150 1.8 1.2 1.4 1.4 1.6 2.5 2.5 2.5 2.5 2.5 2.6 2.7 2.9 50.6 47.3 52.3 62.0 5919 7257 9126 11427 4027 4420 5343 6698
185 2.0 1.4 1.4 1.6 1.6 2.5 2.5 2.5 2.5 2.6 2.7 2.9 3.1 55.4 51.5 57.8 70.3 7028 8630 10993 13819 4695 5131 6327 7987
240 2.2 1.4 1.6 1.6 1.6 2.5 2.5 2.5 3.15 2.8 2.9 3.1 3.4 61.0 59.3 65.3 77.0 8521 10856 13726 17857 5495 6316 7673 10291
300 2.4 1.6 1.6 1.6 1.8 2.5 2.5 2.5 3.15 3.0 3.1 3.3 3.6 67.0 62.4 71.9 82.9 10178 12930 16619 21385 6392 7250 9045 11918
400 2.6 1.6 1.8 3.15 3.15 3.4 3.7 70.9 82.7 97.8 17174 22239 9601 12141
500 2.8 1.8 3.15 3.6 88.3 21557 12090
0.6/1KV PVC/PVC Power cable (steel tape armored) VV22,VLV22




Conductor dimensions (mm2)





nsulation thickness (mm)

 Steel tape armoured cable
PVC bedding thickness Armored wire Outer diameter

Sheath thickness

 Outer diameter (approximate) Cable weight (approximate) (Kg/km) Cable weight (approximate) (Kg/km)
mm mm mm mm Copper core Aluminum core
2C 3C 4C 5C 2C 3C 4C 5C 2C 3C 4C 5C 2C 3C 4C 5C 2C 3C 4C 5C 2C 3C 4C 5C
1.5 0.8 0.9 0.9 0.9 0.9 0.2 0.2 0.2 0.2 1.8 1.8 1.8 1.8 12.2 12.6 13.4 14.2 229 254 294 334 210 226 257 287
2.5 0.8 0.9 0.9 0.9 0.9 0.2 0.2 0.2 0.2 1.8 1.8 1.8 1.8 13.0 13.5 14.4 15.3 265 302 355 407 234 255 293 329
4 1.0 0.9 0.9 0.9 0.9 0.2 0.2 0.2 0.2 1.8 1.8 1.8 1.8 14.7 15.4 16.5 17.7 335 395 473 546 285 320 373 422
6 1.0 0.9 0.9 0.9 0.9 0.2 0.2 0.2 0.2 1.8 1.8 1.8 1.8 15.7 16.5 17.7 19.1 403 476 578 676 328 364 429 489
10 1.0 0.9 0.9 0.9 0.9 0.2 0.2 0.2 0.2 1.8 1.8 1.8 1.8 18.0 18.9 20.4 22.1 538 660 811 956 413 471 559 641
16 1.0 0.9 0.9 0.9 0.9 0.2 0.2 0.2 0.2 1.8 1.8 1.8 1.8 20.2 21.3 23.1 25.1 715 908 1118 1328 513 606 715 824
25 1.2 0.9 0.9 0.9 0.9 0.2 0.2 0.2 0.2 1.8 1.8 1.8 1.8 23.0 24.3 26.5 28.9 971 1245 1556 1867 656 773 927 1080
35 1.2 0.9 0.9 0.9 0.9 0.2 0.2 0.2 0.2 1.8 1.8 1.9 2.0 25.4 26.9 29.6 32.5 1211 1598 1993 2422 770 937 1112 1321
50 1.4 0.9 0.9 0.9 1.2 0.2 0.2 0.2 0.5 1.8 1.9 2.0 2.2 28.6 30.5 33.6 39.0 1536 2089 2690 3720 907 1145 1432 2147
70 1.4 0.9 0.9 1.2 1.2 0.2 0.2 0.5 0.5 1.9 2.0 2.2 2.3 25.2 29.0 35.3 41.7 1884 2666 3862 4792 1002 1342 2097 2585
95 1.6 1.2 1.2 1.2 1.2 0.5 0.5 0.5 0.5 2.1 2.2 2.4 2.5 31.0 35.2 40.6 46.8 2818 3910 5078 6256 1620 2114 2682 3261
120 1.6 1.2 1.2 1.2 1.4 0.5 0.5 0.5 0.5 2.2 2.3 2.5 2.6 33.6 38.1 43.0 51.1 3395 4734 6118 7647 1882 2464 3092 3864
150 1.8 1.2 1.2 1.4 1.4 0.5 0.5 0.5 0.5 2.4 2.5 2.6 2.8 36.6 41.9 47.3 56.6 4120 5790 7516 9378 2228 2953 3733 4649
185 2.0 1.2 1.4 1.4 1.4 0.5 0.5 0.5 0.5 2.5 2.6 2.8 3.0 42.4 46.5 52.4 64.9 5045 7052 9145 11487 2713 3552 4480 5655
240 2.2 1.4 1.4 1.4 1.4 0.5 0.5 0.5 0.5 2.7 2.8 3.0 3.2 48.0 53.9 59.9 70.0 6393 8984 11630 14440 3367 4445 5577 6874
300 2.4 1.4 1.4 1.4 1.4 0.5 0.5 0.5 0.5 2.9 3.0 3.2 3.5 53.2 57.0 66.5 75.8 7802 10923 14305 17714 4016 5243 6731 8247
400 2.6 1.4 1.4 1.4 0.5 0.8 0.8 3.3 3.6 3.8 64.2 76.8 91.9 14155 19356 6581 9258
500 1.4 0.5 3.4 81.2 17684 8217
0.6/1KV  PVC/PVC  Power  cable  (steel wire armored) VV32, VLV32


Conductor dimensions (mm2)



Insulation thickness (mm)

 Armored wire cable
PVC bedding thickness Armored wire Outer diameter

Sheath thickness

 Outer diameter (approximate) Cable weight (approximate) (Kg/km) Cable weight (approximate) (Kg/km)
mm mm mm mm Copper core Aluminum core
Phase line Null line Phase line Null line 3+1C 3+2C 4+1C 3+1C 3+2C 4+1C 3+1C 3+2C 4+1C 3+1C 3+2C 4+1C 3+1C 3+2C 4+1C 3+1C 3+2C 4+1C
2.5 1.5 0.8 0.8 1.0 1.0 1.0 0.8 0.8 0.8 1.8 1.8 1.8 16.5 17.3 17.5 504 557 567 — — —
4 2.5 1.0 0.8 1.0 1.0 1.0 1.25 1.25 1.25 1.8 1.8 1.8 19.3 20.0 20.5 749 809 847 658 704 732
6 4.0 1.0 1.0 1.0 1.0 1.0 1.25 1.25 1.25 1.8 1.8 1.8 20.7 21.8 22.1 880 985 1002 743 823 827
10 6.0 1.0 1.0 1.0 1.0 1.0 1.25 1.6 1.6 1.8 1.8 1.8 23.1 24.9 25.5 1130 1375 1438 904 1112 1149
16 10.0 1.0 1.0 1.0 1.0 1.0 1.6 1.6 1.6 1.8 1.8 1.8 26.5 27.9 28.5 1605 1780 1872 1240 1352 1406
25 16.0 1.2 1.0 1.0 1.0 1.0 1.6 1.6 1.6 1.8 1.8 1.9 29.7 31.4 32.3 2090 2333 2471 1517 1660 1741
35 16.0 1.2 1.0 1.0 1.0 1.0 1.6 1.6 1.6 1.9 1.9 2.0 32.1 33.5 35.1 2472 2698 2975 1717 1849 2000
50 25.0 1.4 1.2 1.0 1.2 1.2 2.0 2.0 2.0 2.0 2.1 2.1 36.8 39.2 40.7 3434 3878 4205 2333 2620 2790
70 35.0 1.4 1.2 1.2 1.2 1.2 2.0 2.0 2.0 2.1 2.2 2.3 38.2 42.1 43.0 4235 4806 5248 2690 3041 3262
95 50.0 1.6 1.4 1.2 1.2 1.4 2.0 2.5 2.5 2.3 2.5 2.5 42.9 49.2 50.5 5417 6789 7334 3306 4363 4623
120 70.0 1.6 1.4 1.4 1.4 1.4 2.5 2.5 2.5 2.5 2.6 2.7 47.5 53.0 54.9 7082 8193 8818 4371 5041 5351
150 70.0 1.8 1.4 1.4 1.4 1.4 2.5 2.5 2.5 2.6 2.7 2.8 50.9 57.3 59.2 8200 9418 10340 4921 5698 6116
185 95.0 2.0 1.6 1.4 1.4 1.6 2.5 2.5 2.5 2.8 2.9 3.0 56.6 62.8 65.0 9968 11365 12481 5870 6668 7216
240 120.0 2.2 1.6 1.6 1.6 1.6 2.5 2.5 2.5 3.0 3.1 3.2 65.1 70.9 72.3 12495 14139 15454 7199 8086 8645
300 150.0 2.4 1.8 1.6 1.6 1.8 2.5 2.5 3.15 3.2 3.3 3.5 70.8 78.1 77.5 15024 17101 19338 8399 9530 10818
400 185.0 2.6 2.0 1.8 1.8 1.8 3.15 3.15 3.15 3.5 3.6 3.8 81.9 88.6 82.4 19977 22502 24053 11237 12595 12788
0.6/1KV  PVC/PVC  Power  cable  (steel tape armored) VV22, VLV22


Conductor dimensions (mm2)



Insulation thickness (mm)

 Steel tape armoured cable
PVC bedding thickness Armored wire Outer diameter

Sheath thickness

 Outer diameter (approximate) Cable weight (approximate) (Kg/km) Cable weight (approximate) (Kg/km)
mm mm mm mm Copper core Aluminum core
Phase line Null line Phase line Null line 3+1C 3+2C 4+1C 3+1C 3+2C 4+1C 3+1C 3+2C 4+1C 3+1C 3+2C 4+1C 3+1C 3+2C 4+1C 3+1C 3+2C 4+1C
2.5 1.5 0.8 0.8 0.9 0.9 0.9 0.2 0.2 0.2 1.8 1.8 1.8 14.1 14.4 15.4 358 317 330 — — —
4 2.5 1.0 0.8 0.9 0.9 0.9 0.2 0.2 0.2 1.8 1.8 1.8 16.0 17.1 17.7 451 414 431 360 308 316
6 4.0 1.0 1.0 0.9 0.9 0.9 0.2 0.2 0.2 1.8 1.8 1.8 17.4 18.9 19.1 558 534 550 421 372 376
10 6.0 1.0 1.0 0.9 0.9 0.9 0.2 0.2 0.2 1.8 1.8 1.8 19.8 21.3 22.0 755 735 780 529 471 491
16 10.0 1.0 1.0 0.9 0.9 0.9 0.2 0.2 0.2 1.8 1.8 1.8 22.5 24.2 24.7 1034 1032 1106 669 604 640
25 16.0 1.2 1.0 0.9 0.9 0.9 0.2 0.2 0.2 1.8 1.8 1.8 25.7 28.3 28.9 1440 1483 1587 867 810 857
35 16.0 1.2 1.0 0.9 0.9 0.9 0.2 0.2 0.2 1.8 1.9 1.9 28.1 29.2 29.3 1713 1782 1979 958 933 1004
50 25.0 1.4 1.2 0.9 0.9 0.9 0.2 0.2 0.2 1.9 2.0 2.1 32.0 33.2 34.5 2349 2489 2771 1248 1230 1355
70 35.0 1.4 1.2 0.9 1.2 1.2 0.2 0.5 0.5 2.1 2.2 2.2 33.0 38.8 39.7 3124 3412 3781 1579 1647 1795
95 50.0 1.6 1.4 1.2 1.2 1.2 0.5 0.5 0.5 2.3 2.4 2.4 39.5 44.3 45.2 4581 4611 5070 2469 2185 2359
120 70.0 1.6 1.4 1.2 1.2 1.4 0.5 0.5 0.5 2.4 2.5 2.6 42.2 47.7 50.1 5585 5791 6368 2873 2639 2900
150 70.0 1.8 1.4 1.2 1.4 1.4 0.5 0.5 0.5 2.5 2.6 2.7 46.1 52.3 54.4 6629 6832 7665 3350 3112 3441
185 95.0 2.0 1.6 1.4 1.4 1.4 0.5 0.5 0.5 2.7 2.8 2.9 51.8 57.8 59.8 8211 8546 9478 4112 3849 4213
240 120.0 2.2 1.6 1.4 1.4 1.4 0.5 0.5 0.5 2.9 3.0 3.1 59.9 67.5 69.1 10408 10881 12110 5112 4828 5301
300 150.0 2.4 1.8 1.4 1.4 1.4 0.5 0.5 0.5 3.1 3.2 3.3 65.6 76.7 79.0 12750 13506 15018 6124 5935 6499
400 185.0 2.6 2.0 1.4 1.4 1.4 0.5 0.5 0.8 3.3 3.5 3.7 74.8 83.3 79.3 16399 17393 19405 7659 7486 8140
1.8/3 (3.6) KV PVC/PVC single core (non-armored) VV, VLV
Conductor

Insulation thickness (mm)

 Copper tape screen (approximate) (mm)

Sheath thickness (mm)

 Outer diameter (approximate) (mm) Copper core cable weight (kg/km) Aluminum core cable weight (kg/km) Insulation resistance 20°C (Min)

(MΩ/km)
Cross sectional area (mm2)

Structure

 Oute diameter (mm)
10 Compact round 3.9 2.2 0.12 1.4 13.3 280 217 100
16 Compact round 5.0 2.2 0.12 1.4 14.4 358 258 100
25 Compact round 6.0 2.2 0.12 1.4 15.4 461 305 100
35 Compact round 7.2 2.2 0.12 1.5 16.8 585 366 100
50 Compact round 8.4 2.2 0.12 1.5 18.0 746 434 100
70 Compact round 10.0 2.2 0.12 1.6 19.8 972 534 100
95 Compact round 11.7 2.2 0.12 1.6 21.5 1236 641 100
120 Compact round 13.1 2.2 0.12 1.7 23.1 1504 752 100
150 Compact round 14.6 2.2 0.12 1.7 24.6 1809 869 100
185 Compact round 16.3 2.2 0.12 1.8 26.5 2175 1017 100
240 Compact round 18.5 2.2 0.12 1.8 28.7 2723 1220 100
300 Compact round 20.7 2.4 0.12 1.9 31.5 3360 1480 100
400 Compact round 23.8 2.6 0.12 2.1 35.4 4403 1896 100
500 Compact round 26.6 2.8 0.12 2.2 38.8 5431 2298 100
630 Compact round 30.1 2.8 0.12 2.3 42.5 6721 2772 100
800 Compact round 35.0 2.8 0.12 2.4 47.6 8415 3401 100
1000 Milliken conductor 39.5 3.0 0.12 2.6 52.9 10443 4175 100
1.8/3 (3.6) KV PVC/PVC 3 cores (non-armored) VV, VLV
Conductor

Insulation thickness (mm)

 Copper tape screen (approximate) (mm)

Sheath thickness (mm)

 Outer diameter (approximate) (mm) Copper core cable weight (kg/km) Aluminum core cable weight (kg/km) Insulation resistance 20°C (Min)

(MΩ/km)
Cross sectional area (mm2)

Structure

 Oute diameter (mm)
10 Compact round 3.9 2.2 0.1 1.8 23.7 781 592 100
16 Compact round 5.0 2.2 0.1 1.8 26.0 1055 753 100
25 Compact round 6.0 2.2 0.1 1.8 28.2 1359 887 100
35 Compact round 7.2 2.2 0.1 1.9 31.0 1739 1079 100
50 Compact round 8.4 2.2 0.1 2.0 33.8 2146 1202 100
70 Compact round 10.0 2.2 0.1 2.1 37.4 2805 1481 100
95 Compact round 11.7 2.2 0.1 2.2 41.3 3609 1812 100
120 Compact round 13.1 2.2 0.1 2.3 44.5 4397 2127 100
150 Compact round 14.6 2.2 0.1 2.4 47.9 5337 2500 100
185 Compact round 16.3 2.2 0.1 2.6 52.0 6446 2947 100
240 Compact round 18.5 2.2 0.1 2.7 56.9 8113 3573 100
300 Compact round 20.7 2.4 0.1 2.9 62.9 10041 4361 100
400 Compact round 23.8 2.6 0.1 3.2 71.1 13178 5604 100
500 Compact round 26.6 2.8 0.1 3.4 78.4 16291 6824 100
1.8/3 (3.6) KV PVC/PVC 3 cores (steel wire armored) VV32, VLV32
Conductor

Insulation thickness (mm)

 Copper tape  screen (approximate) (mm)

PVC

bedding thickness (mm)



Armored wire outer diameter (mm)



Sheath thickness (mm)



Outer diameter (approximate) (mm)



Copper core cable weight (kg/km)



Aluminum core cable weight (kg/km)



Insulation resistance 20°C (Min)

(MΩ/km)
Cross sectional area (mm2)

Structure

 Oute diameter (mm)
10 Compact round 3.9 2.2 0.1 1.2 1.6 1.9 30.1 1712 1523 100
16 Compact round 5.0 2.2 0.1 1.2 1.6 2.0 32.6 2084 1782 100
25 Compact round 6.0 2.2 0.1 1.2 2.0 2.1 35.8 2735 2263 100
35 Compact round 7.2 2.2 0.1 1.2 2.0 2.2 38.6 3218 2558 100
50 Compact round 8.4 2.2 0.1 1.2 2.0 2.3 41.4 3753 2809 100
70 Compact round 10.0 2.2 0.1 1.2 2.0 2.4 45.0 4573 3249 100
95 Compact round 11.7 2.2 0.1 1.3 2.5 2.6 50.7 6145 4348 100
120 Compact round 13.1 2.2 0.1 1.4 2.5 2.7 54.1 7157 4887 100
150 Compact round 14.6 2.2 0.1 1.4 2.5 2.8 57.5 8303 5465 100
185 Compact round 16.3 2.2 0.1 1.5 2.5 3.0 61.8 9655 6155 100
240 Compact round 18.5 2.2 0.1 1.6 2.5 3.1 66.9 11657 7117 100
300 Compact round 20.7 2.4 0.1 1.7 2.5 3.3 73.1 13943 8263 100
400 Compact round 23.8 2.6 0.1 1.8 3.15 3.6 82.8 18508 10935 100
500 Compact round 26.6 2.8 0.1 2.0 3.15 3.8 90.5 22256 12789 100
1.8/3 (3.6) KV PVC/PVC 3 cores (steel tape armored) VV22, VLV22
Conductor

Insulation thickness (mm)

 Copper tape  screen (approximate) (mm)

PVC

bedding thickness (mm)



Armored tape outer diameter (mm)



Sheath thickness (mm)



Outer diameter (approximate) (mm)



Copper core cable weight (kg/km)



Aluminum core cable weight (kg/km)



Insulation resistance 20°C (Min)

(MΩ/km)
Cross sectional area (mm2)

Structure

 Oute diameter (mm)
10 Compact round 3.9 2.2 0.1 1.2 0.2 1.8 26.9 1080 891 100
16 Compact round 5.0 2.2 0.1 1.2 0.2 1.8 29.2 1383 1081 100
25 Compact round 6.0 2.2 0.1 1.2 0.2 1.9 31.6 1728 1256 100
35 Compact round 7.2 2.2 0.1 1.2 0.2 2.0 34.4 2143 1482 100
50 Compact round 8.4 2.2 0.1 1.2 0.2 2.1 37.2 2584 1640 100
70 Compact round 10.0 2.2 0.1 1.2 0.5 2.2 42.0 3684 2360 100
95 Compact round 11.7 2.2 0.1 1.3 0.5 2.4 46.3 4620 2823 100
120 Compact round 13.1 2.2 0.1 1.4 0.5 2.5 49.7 5507 3237 100
150 Compact round 14.6 2.2 0.1 1.4 0.5 2.6 53.1 6528 3690 100
185 Compact round 16.3 2.2 0.1 1.5 0.5 2.7 57.2 7735 4235 100
240 Compact round 18.5 2.2 0.1 1.6 0.5 2.9 62.5 9578 5039 100
300 Compact round 20.7 2.4 0.1 1.7 0.5 3.1 68.7 11687 6007 100
400 Compact round 23.8 2.6 0.1 1.8 0.5 3.4 77.1 15066 7492 100
500 Compact round 26.6 2.8 0.1 2.0 0.8 3.6 86.0 19277 9810 100

Case Video

Certificate Display

Factory Tour

Why choose us?

Professional

20+ years cable export experience, with full knowledges of all kinds STANDARDS, we have EN/ES/FR sales for deep communications.

Professional

20+ years cable export experience, with full knowledges of all kinds STANDARDS, we have EN/ES/FR sales for deep communications.
Read More

Fast Delivery

Our factory has sufficient capacity, and we can generally complete production for most orders within 2 ~ 3 weeks, maximum 1 ~ 1.5 months.

Fast Delivery

Our factory has sufficient capacity, and we can generally complete production for most orders within 2 ~ 3 weeks, maximum 1 ~ 1.5 months.
Read More

Good Price

Relying on robust Chinese cable manufacturing supply chain enables us to maintain low costs, to offer competitive cable products to our customers.

Good Price

Relying on robust Chinese cable manufacturing supply chain enables us to maintain low costs, to offer competitive cable products to our customers.
Read More

High Quality

We have complete cable type tests and a quality inspection process, supporting customer or third-party quality acceptance to ensure we deliver high-quality products.

High Quality

We have complete cable type tests and a quality inspection process, supporting customer or third-party quality acceptance to ensure we deliver high-quality products.
Read More

FAQs

Who are we?

We are Manufacturer more than 21 years experience in Binzhou City, shangdong, China. We start from 2004, sell to Domestic Market(52.00%), Eastern Asia(25.00%), Africa(10.00%), Mid East(6.00%),Southeast Asia(4.00%),South Asia(3.00%). There are total about 301-500 people in our office.

Always a pre-production sample before mass production; Always have strict control of the quality from the raw material to finished products according to ISO9001 QC system before shipment.

House eletric wire, Anti-aging wire, Solar PV cable, Control cable, Shielded computer cable, Low/Medium/High Voltage power cable, Aluminum alloy cable, Aerial insulated cable, Steel core aluminum standed wire, LSZH cable, Fireproof cable, Wind power cable, EV charging cable, Energy storage cable, Mining cable, etc.

hengwang cable company has passed ISO9001 quality management system, ISO14001 environmental management system, ISO45001\German TUV certification\CE certification, the company is a finalist for the state power grid and a national”High-tech Enterprise.

Accepted Delivery Terms: FOB,CFR,EXW,FAS,DDP； Accepted Payment Currency:USD,EUR,CAD,AUD,GBP,CNY; Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,Western Union,Cash; Language Spoken:English,Chinese,Japanese,German,Russian

Yes, we have production line for packing box and cartons. we can make it according to your special requirement. If you are interested in our goods , please kindly send an inquiry to us !

Contact us to get your quote!

  • 24-hour online service
  • Own factory processing

Products

Related Products

FOLLOW US :

Facebook Twitter Youtube

Originated in 2004, Hengwang Cable specializes in manufacturing a comprehensive range of electric wires and cables with rated voltages from 300V to 110kV.

our products

NEED HELP

Contact Info

Inquiry

WhatsApp

© Copyright 2025 by Shandong Hengwang Cable Co., Ltd. All Rights Reserved.

Privacy Policy

home

profile

our range

contact us

call us

Contact Us Right Now

Fill out the form to download the brochure
