Instrumentation Cable

Category: Control & Instrument Cable Tags: 300V Instrumentation Cable, Multiple Pairs or Triads Cable

Minimum Order Quantity: 2KM;
Payment Type: T/T, L/C, MoneyGram, Credit Card, Western Union, Cash;
Shipping: Shipping fee and delivery date to be negotiated. Chat with supplier now for more details;
Secure Payments: Every payment you make is secured with strict SSL encryption and PCI DSS data protection protocols;
Delivery Terms: FOB, CFR, EXW, FAS, DDP；
Payment Currency: USD, EUR, CAD, AUD, GBP, CNY

Product Description

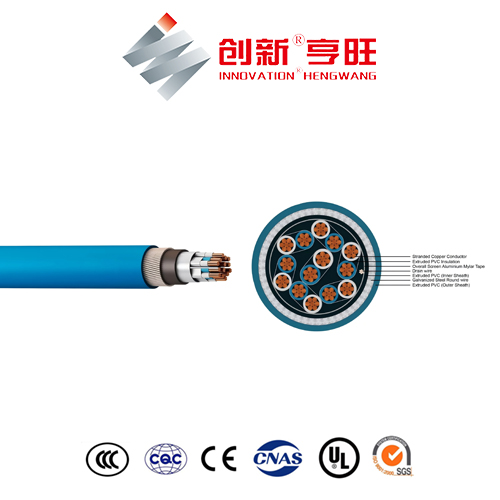

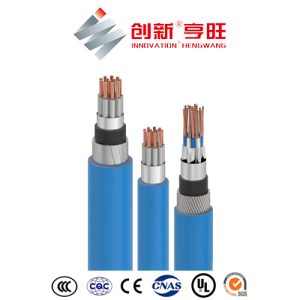

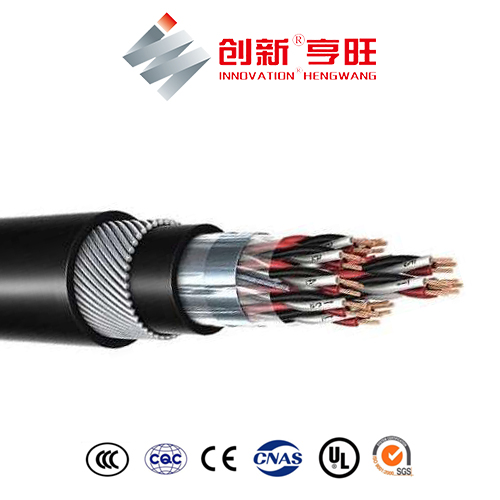

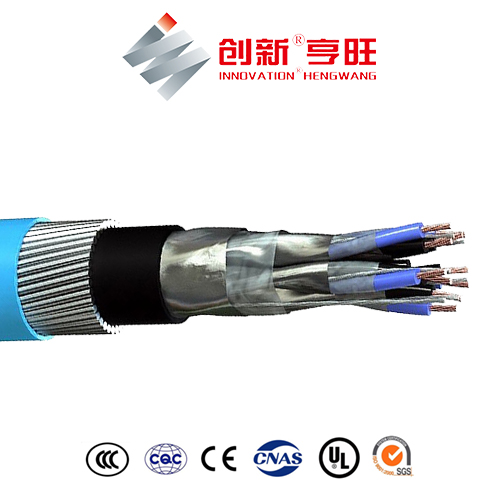

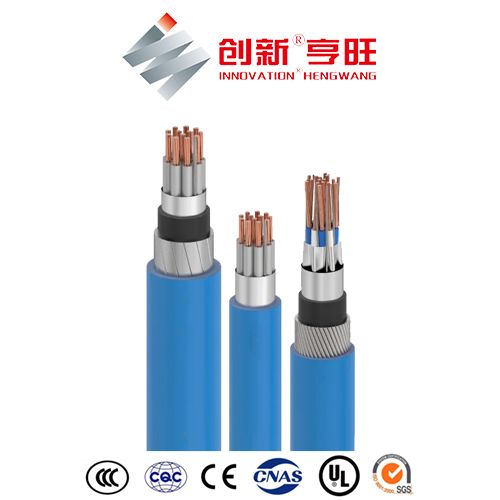

Instrumentation cable

Our instrumentation cable products with flexible copper conductors comply with British and International Standards, including BS5308 instrumentation cables to British standards, French standard NF M87-202, European standard BS EN 50288-7, and US UL standard PLTC cables amongst others. Our technical team also works with customers to develop screened cables designed and manufactured to meet their applications’ specific requirements for industries including oil, gas & petrochemical, automation and process control, and marine & offshore. We can also customize instrumentation cables according to your needs. We supply a wide range of instrumentation cables suitable for an even wider range of applications across industries where manufacturing and processing operations are controlled and measured by electronic means. For optimal performance, these interconnection cables have to be reliable, and robust and offer shielded protection, whether an overall screen or individually and collectively screened cable, to resist electromagnetic interference.

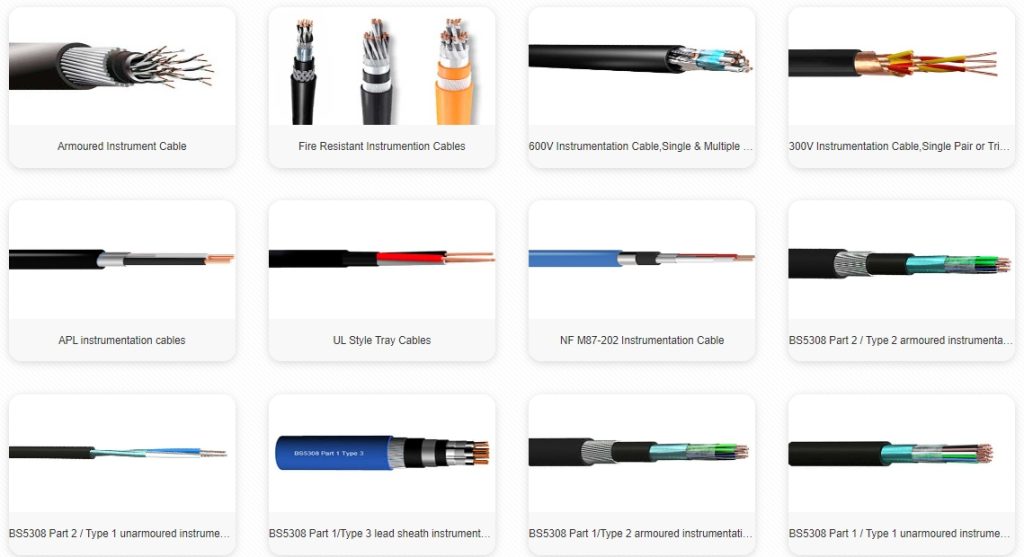

Instrumentation cables – BS EN 50288-7 Cables

RE-Y(St)Y-fl Cable	PVC Insulation,Collective Screen,PVC Sheath Instrumentation Cable
RE-Y(St)Y-fl PIMF/TIMF Cable	PVC Insulation,Individual & Collective Screen,PVC Sheath Instrumentation Cable
RE-Y(St)YSWAY-fI Cable	PVC Insulation,Collective Screen,Galvanized Steel Wire Armoring,PVC Sheath Instrumentation Cable
RE-Y(St)YSWAY-fI PIMF/TIMF Cable	PVC Insulation,Individual & Collective Screen,Galvanized Steel Wire Armoring,PVC Sheath Instrumentation Cable
RE-2Y(St)Y-fI Cable	PE Insulation,Collective Screen,PVC Sheath Instrumentation Cable
RE-2Y(St)Y-fI PIMF/TIMF Cable	PE Insulation,Individual & Collective Screen,PVC Sheath Instrumentation Cable
RE-2Y(St)YSWAY-fI Cable	PE Insulation, Al/PET Overall Screen, PVC Inner Sheath, Galvanized Steel Wire Armoring, PVC Sheath Instrumentation Cable
RE-2Y(St)YSWAY-fI PIMF/TIMF Cable	PE Insulation, Al/PET Individual & Overall Screen, PVC Inner Sheath, Galvanized Steel Wire Armoring, PVC Sheath Instrumentation Cable
RE-2X(St)Y-fI Cable	XLPE Insulation, Al/PET Overall Screen, PVC Sheath intrumentation cable
RE-2X(St)Y-fI PIMF/TIMF Cable	XLPE Insulation, Al/PET Individual & Overall Screen, PVC Sheath Instrumentation Cable
RE-2X(St)YSWAY-fI Cable	XLPE Insulation, Al/PET Overall Screen, PVC Inner Sheath, Galvanized Steel Wire Armoring, PVC Sheath Instrumentation Cable
RE-2X(St)YSWAY-fI PIMF/TIMF Cable	XLPE Insulation, Al/PET Individual & Overall Screen, PVC Inner Sheath, Galvanized Steel Wire Armoring, PVC Sheath Instrumentation Cable
RE-2Y(St)H Cable	PE Insulation, Al/PET Overall Screen, LSZH Sheath intrumentation cable
RE-2Y(St)H PIMF/TIMF Cable	PE Insulation, Al/PET Individual & Overall Screen, LSZH Sheath Instrumentation Cable
RE-2Y(St)HSWAH Cable	PE Insulation, Al/PET Overall Screen, PVC Inner Sheath, Galvanized Steel Wire Armoring, LSZH Sheath Instrumentation Cable
RE-2Y(St)HSWAH PIMF/TIMF Cable	PE Insulation, Al/PET Individual & Overall Screen, PVC Inner Sheath, Galvanized Steel Wire Armoring, LSZH Sheath Instrumentation Cable
RE-2X(St)H Cable	XLPE Insulation, Al/PET Overall Screen, LSZH Sheath intrumentation cable
RE-2X(St)H PIMF/TIMF Cable	XLPE Insulation, Al/PET Individual & Overall Screen, LSZH Sheath Instrumentation Cable
RE-2X(St)HSWAH Cable	XLPE Insulation, Al/PET Overall Screen,LSZH Inner Sheath, Galvanized Steel Wire Armoring, LSZH Sheath Instrumentation Cable
RE-2X(St)HSWAH PIMF/TIMF Cable	XLPE Insulation, Al/PET Individual & Overall Screen, LSZH Inner Sheath, Galvanized Steel Wire Armoring, LSZH Sheath Instrumentation Cable
RE-2X(St)H..CI Cable	Mica tape + XLPE Insulation, Al/PET Overall Screen, LSZH Sheath intrumentation cable
RE-2X(St)H-PIMF/TIMF..CI Cable	Mica tape + XLPE Insulation, Al/PET Individual & Overall Screen, LSZH Sheath Instrumentation Cable
RE-2X(St)HSWAH..CI Cable	Mica tape + XLPE Insulation, Al/PET Overall Screen, LSZH Inner Sheath, Galvanized Steel Wire Armoring, LSZH Sheath Instrumentation Cable
RE-2X(St)HSWAH-PIMF/TIMF..CI Cable	Mica tape + XLPE Insulation, Al/PET Individual & Overall Screen, LSZH Inner Sheath, Galvanized Steel Wire Armoring, LSZH Sheath Instrumentation Cable
RE-2X(L)2Y4YSWAY-fl Cable	XLPE Insulation,Al/PET Overall Screen, PVC Inner Sheath,Chemical & Moisture Barrier, Galvanized Steel Wire Armoring, PVC Sheath Instrumentation Cable
RE-2X(L)2Y4YSWAY-fl PIMF Cable	XLPE Insulation,Al/PET Individual & Overall Screen, PVC Inner Sheath,Chemical & Moisture Barrier, Galvanized Steel Wire Armoring, PVC Sheath Instrumentation Cable

Instrumentation cables – BS5308 Part 1 and Part 2 Cables:

BS5308 PART 1 / TYPE 1 (UNARMOURED CABLES):

PE/OS/PVC	PE Insulation, Overall Screen, PVC Sheath instrumentation cable
PE/IS/OS/PVC	PE Insulation, Individual & Overall Screen, PVC Sheath Instrumentation Cable
MG/XLPE/OS/LSOH	Mica Tape Wrapped, XLPE Insulation, Overall Screen, LSOH Sheath Instrumentation Cable
XLPE/OS/LSOH	XLPE Insulation, Overall Screen, LSOH Sheath Instrumentation Cable
XLPE / IS / OS / LSOH	XLPE Insulation, Individual & Overall Screen, LSOH Sheath Instrumentation Cable

BS5308 PART 1 / TYPE 2 (ARMOURED CABLES)

PE/OS/SWA/PVC	PE Insulation, Overall Screen, Galvanized Steel Wire Armoring, PVC Sheath instrumentation cable
PE/IS/OS/SWA/PVC	PE Insulation, Individual & Overall Screen, Galvanized Steel Wire Armoring, PVC Sheath Instrumentation Cable
MG/XLPE/OS/SWA/LSOH	Mica Tape Wrapped, XLPE Insulation, Overall Screen, Galvanized Steel Wire Armoring, LSOH Sheath Instrumentation Cable
MG/XLPE/IS/OS/SWA/LSOH	Mica Tape Wrapped, XLPE Insulation, Overall Screen, LSOH Bedding, Galvanized Steel Wire Armoring, LSOH Sheath Instrumentation Cable
XLPE/OS/SWA/LSOH	XLPE Insulation, Overall Screen, Galvanized Steel Wire Armoring, LSOH Sheath instrumentation cable
XLPE/IS/OS/SWA/LSOH	XLPE Insulation, Individual & Overall Screen, Galvanized Steel Wire Armoring, LSOH Sheath Instrumentation Cable

BS5308 PART 1 / TYPE 3 (LEAD SHEATH CABLES)

PE/OS/Lead/SWA/PVC	PE Insulation, Overall Screen, PVC Inner Sheath, Lead Sheath, PVC Bedding, Galvanized Steel Wire Armoring, PVC Outer Sheath Instrumentation Cable
PE/IS/OS/Lead/SWA/PVC	PE Insulation, Individual & Overall Screen, PVC Inner Sheath, Lead Sheath, PVC Bedding, Galvanized Steel Wire Armoring, PVC Outer Sheath Instrumentation Cable

BS5308 PART 2 / TYPE 1 (UNARMOURED CABLES)

PVC/OS/PVC	PVC Insulation, Overall Screen, PVC Sheath instrumentation cable
PVC/IS/OS/PVC	PVC Insulation, Individual & Overall Screen, PVC Sheath Instrumentation Cable

BS5308 PART 2 / TYPE 2 (ARMOURED CABLES)

PVC/OS/SWA/PVC	PVC Insulation, Overall Screen, Galvanized Steel Wire Armoring, PVC Sheath intruinstrumentatione
PVC/IS/OS/SWA/PVC	PVC Insulation, Individual & Overall Screen, Galvanized Steel Wire Armoring, PVC Sheath Instrumentation Cable

Instrumentation cables – French standard NF M 87 – 202 Cables:

EGFA	PVC Ins ulation, PET Binder Tape, Al/PET Overall Screen, PVC Inner Sheath, Double steel tape Armoring, PVC Sheath instrumentation cable
EGSF	PVC Insulation, PET Binder Tape, Al/PET Overall Screen, PVC Sheath Instrumentation Cable
EIFA	PVC Insulation, PET Binder Tape, Al/PET Individual & Overall Screen, PVC Inner Sheath, Double steel tape Armoring, PVC Sheath instrumentation cable
EISF	PVC Insulation, PET Individual & Overall Binder Tape, Al/PET Individual & Overall Screen, PVC Individual Sheath, PVC Sheath instrumentation cable
EGPF	PVC Insulation, PET Binder Tape, Al/PET Overall Screen, PVC Bedding, Lead cover, PVC Inner Sheath, Double steel tape Armoring, PVC Sheath instrumentation cable
EIPF	PVC Insulation, PET Binder Tape, Al/PET Individual & Overall Screen, PVC Bedding, Lead cover, PVC Inner Sheath, Double steel tape Armoring, PVC Sheath instrumentation cable

Instrumentation cables – UL Standards Cables:

UL13 UL2250 ITC-PLTC 105℃PVC-PVC unscreened 300V Cable	PVC Insulation, Polyester tape, PVC Sheath instrumentation cable
UL13 UL2250 ITC-PLTC 105℃ PVC-PVC Overall Screen 300V Cable	PVC Insulation, Polyester tape, Plastic coated aluminum tape Overall shield, PVC Sheath Instrumentation Cable
UL13 UL2250 ITC-PLTC 105℃ PVC-PVC ICAM/CAM 300V Cable	PVC Insulation, Polyester tape, Aluminum tape Individual & Overall shield, PVC Sheath Instrumentation Cable
UL 1277 CAM/ICAM TC-ER 600V Cable	PVC Insulation, Polyester tape, AL-PES foil Individual Shield, PVC Sheath Instrumentation Cable
UL 1277 CAM TC-ER 600V Cable	PVC Insulation, Polyester tape, AL-PES foil Shield, PVC Sheath Instrumentation Cable

Instrumentation cables – SANS 1411 Standard Cables:

APL CAM Armoured Instrumentation Cable	XLPE Insulation, Polyester tape, Al/PET Overall Screen, APL Armouring, PE Sheath Instrumentation Cable
APL ICAM Armoured Instrumentation Cable	XLPE Insulation, Polyester tape, Al/PET Individual & Overall Screen, APL Armouring, PE Sheath Instrumentation Cable

Instrumentation cables – CSA Standard Cables:

ACIC 300V Shielded Pairs & Triads	XLPE Insulation, Al/PET Individual & Overall Screen, PVC Inner Sheath, Armouring, PVC Sheath Instrumentation Cable
ACIC 600V – Shielded Pairs & Triads	XLPE Insulation, Al/PET Individual & Overall Screen, PVC Inner Sheath, Armouring, PVC Sheath Instrumentation Cable

Armoured Instrument Cable Specifications

No.of pairs + cross-section Mm 2	Outer diaeter approx. mm		Cable Weight kg /km
300V OS (PE/SWA/PVC or XLPE/SWA/LSHF or XLPE/SWA/PVC)
1x2x0.5	10.7		229
2x2x0.5	14.5		374
4x2x0.5	16.3		458
5x2x0.5	18.4		534
6x2x0.5	18.5		553
10x2x0.5	21.6		728
12x2x0.5	22.3		781
15x2x0.5	24.2		893
20x2x0.5	27.1		1082
24x2x0.5	29.5		1380
1x2x0.75	10.9		241
2x2x0.75	14.9		399
4x2x0.75	16.9		483
5x2x0.75	19.0		571
6x2x0.75	19.2		594
10x2x0.75	22.4		785
12x2x0.75	23.1		845
15x2x0.75	25.3		986
20x2x0.75	28.8		1347
24x2x0.75	30.9		1524
1x2x1	11.3		260
2x2x1	15.9		443
4x2x1	18.0		552
5x2x1	20.2		641
6x2x1	20.3		670
10x2x1	23.8		897
12x2x1	24.8		988
15x2x1	27.8		1308
20x2x1	30.9		1572
24x2x1	33.2		1780
1x2x1.5		12.1	299
2x2x1.5		17.2	516
4x2x1.5		19.7	664
5x2x1.5		22.1	769
6x2x1.5		22.3	816
10x2x1.5		27.0	1268
12x2x1.5		28.1	1389
15x2x1.5		30.7	1621
20x2x1.5		34.4	1980
24x2x1.5		36.7	2239
500 V OS (PE/SWA/PVC or XLPE/SWA/LSHF or XLPE/SWA/PVC)
1x2x2.5		13.1	345
2x2x2.5		19.0	624
4x2x2.5		21.9	817
5x2x2.5		25.2	1094
6x2x2.5		25.8	1186
10x2x2.5		30.3	1615
12x2x2.5		31.4	1762
15x2x2.5		35.3	2296
20x2x2.5		39.4	2798
24x2x2.5		42.6	3221

Case Video

Certificate Display

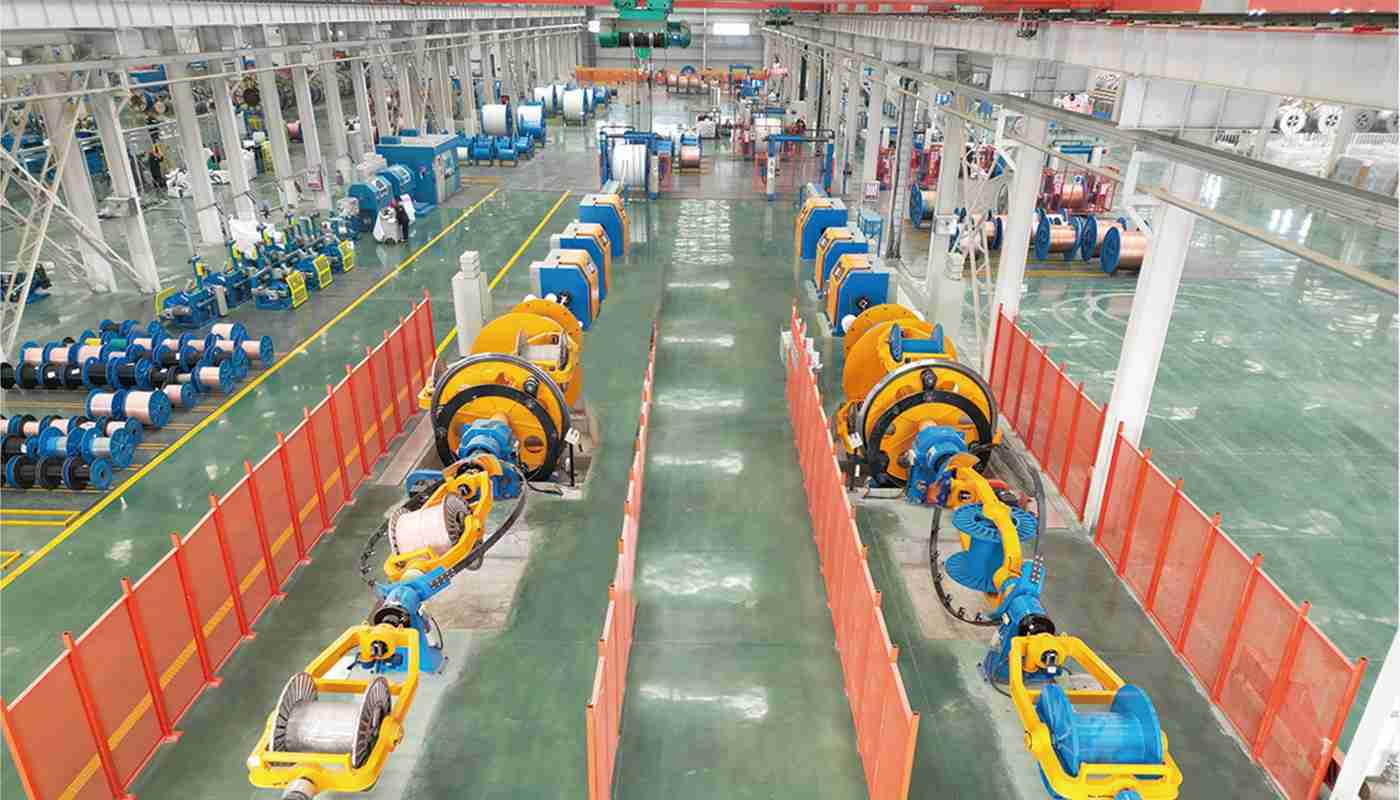

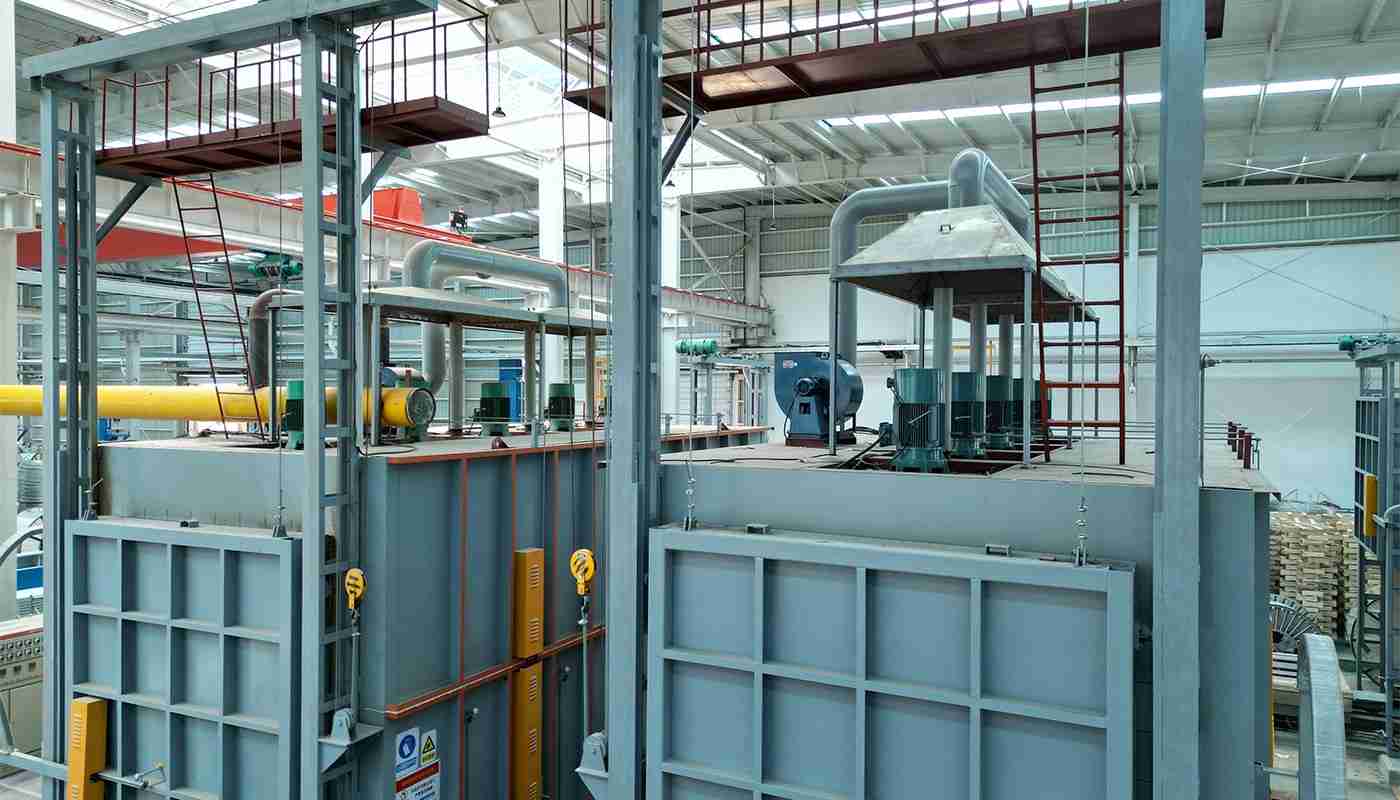

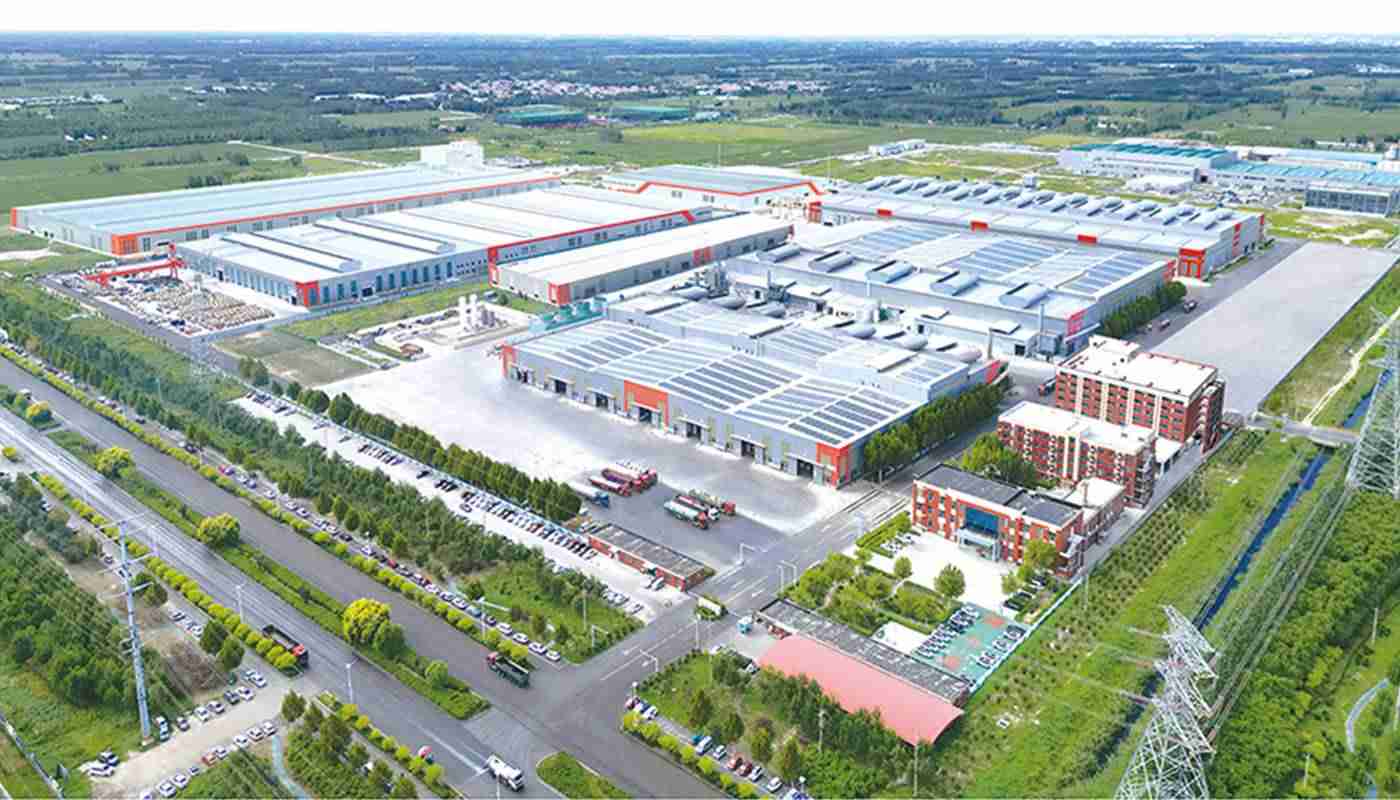

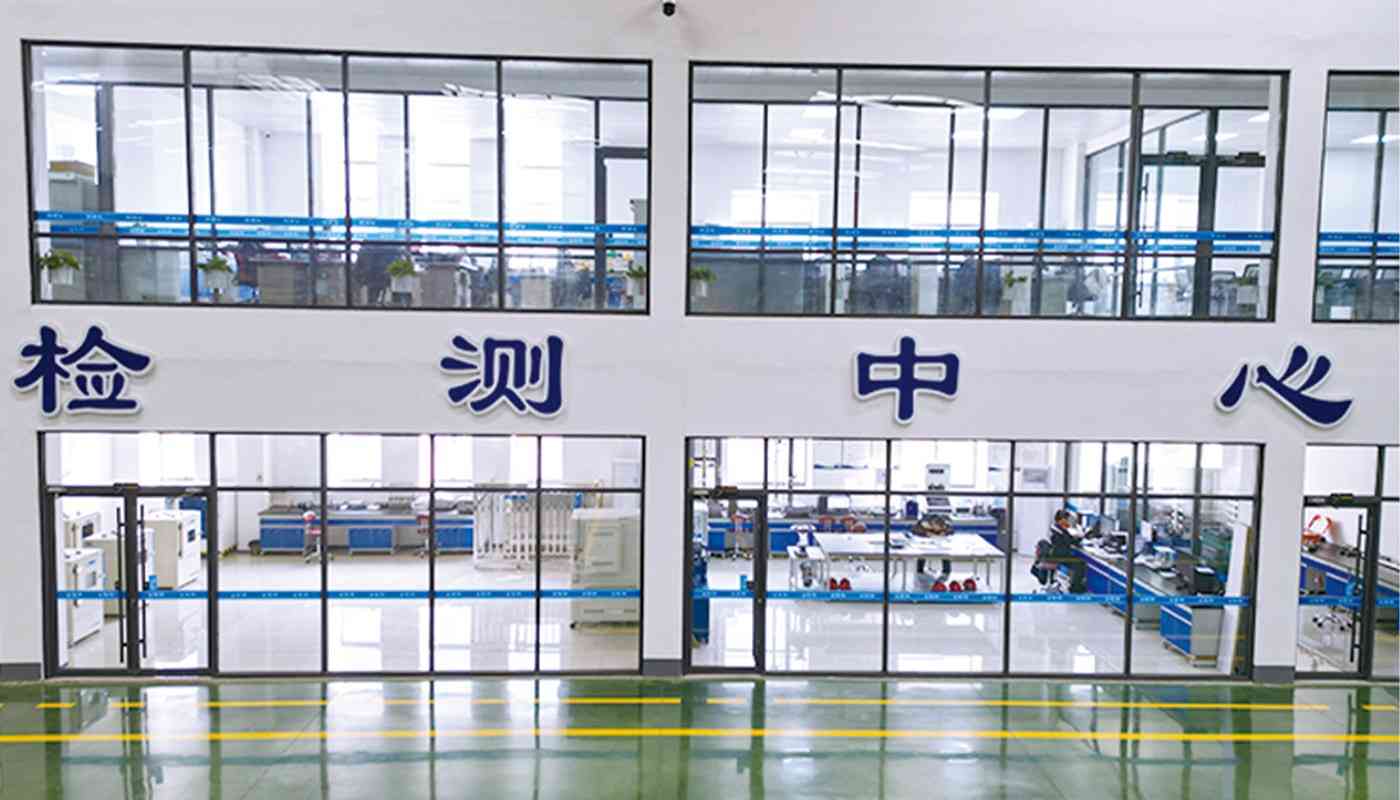

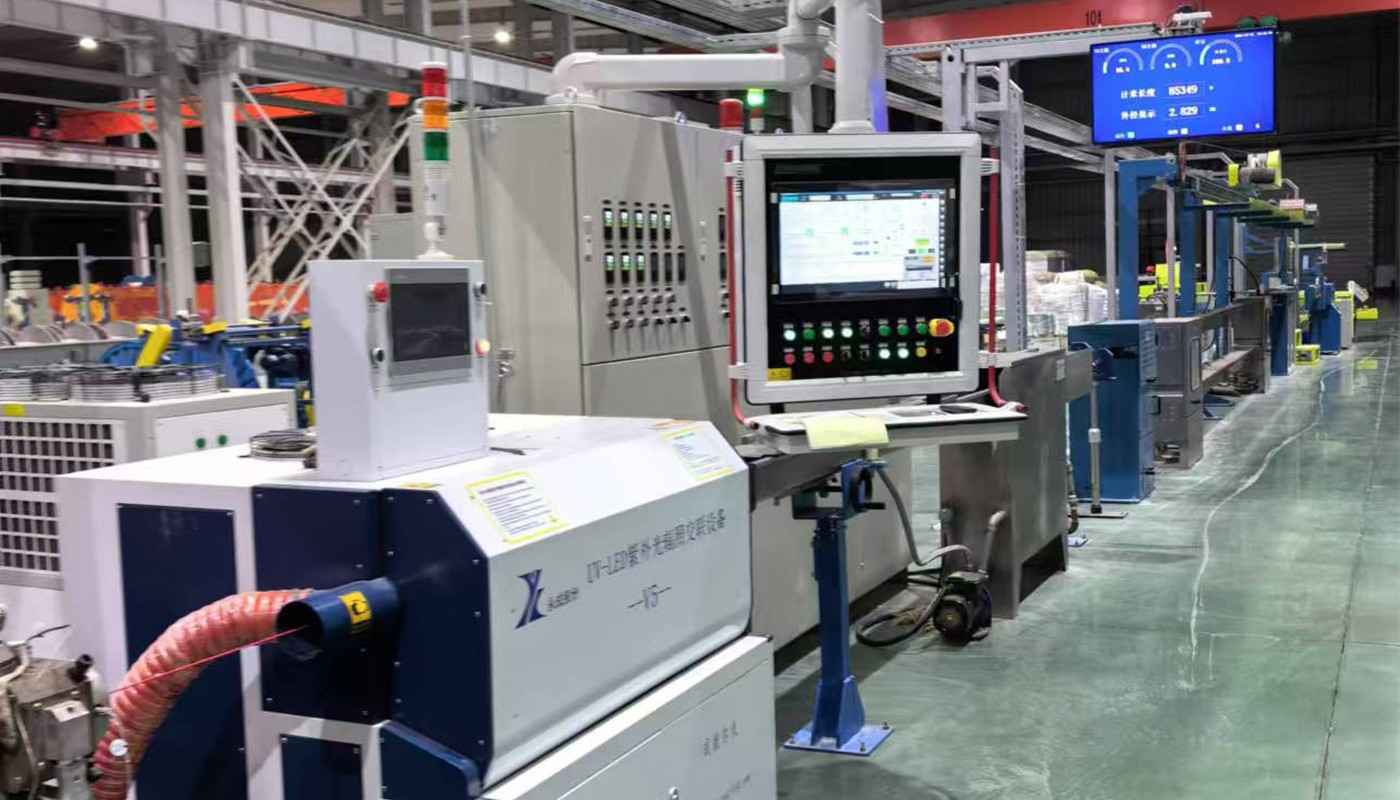

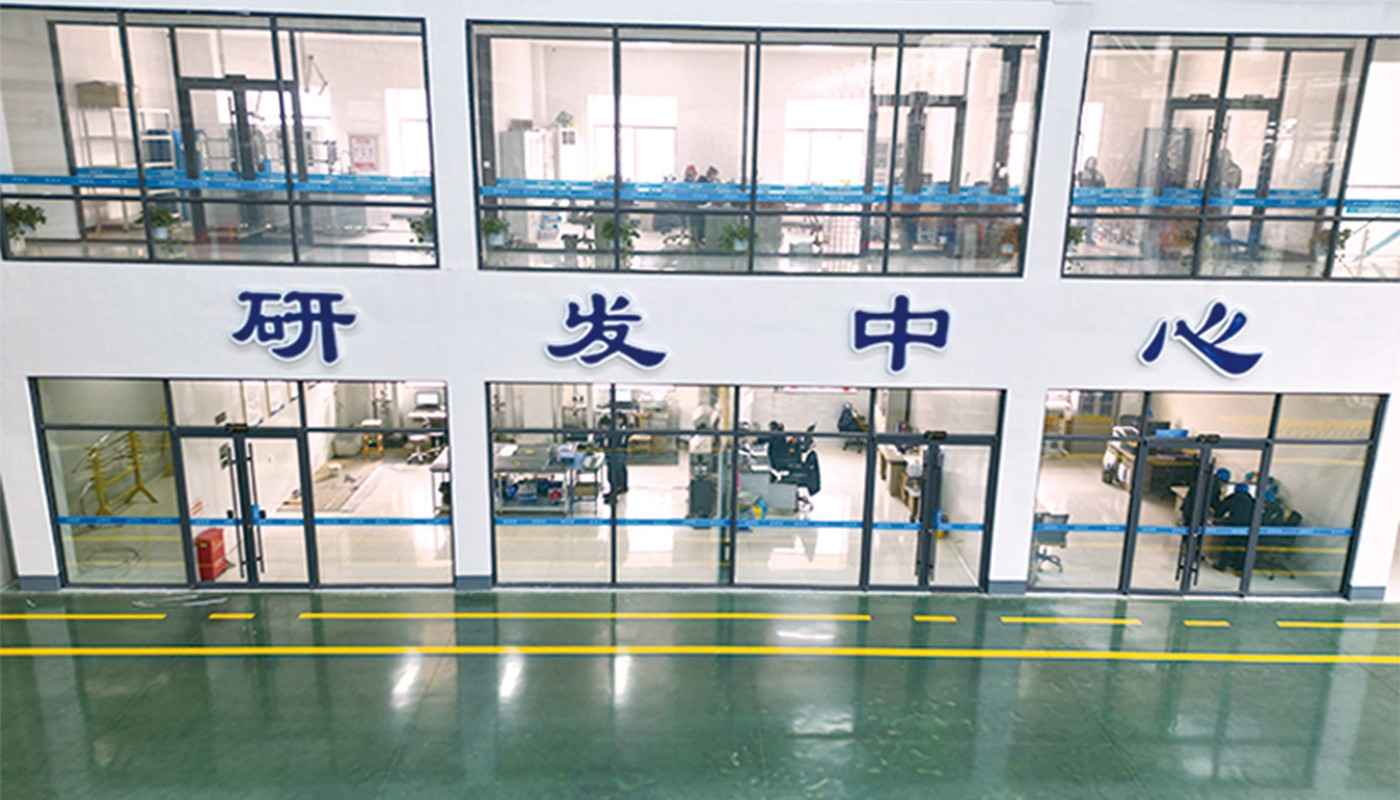

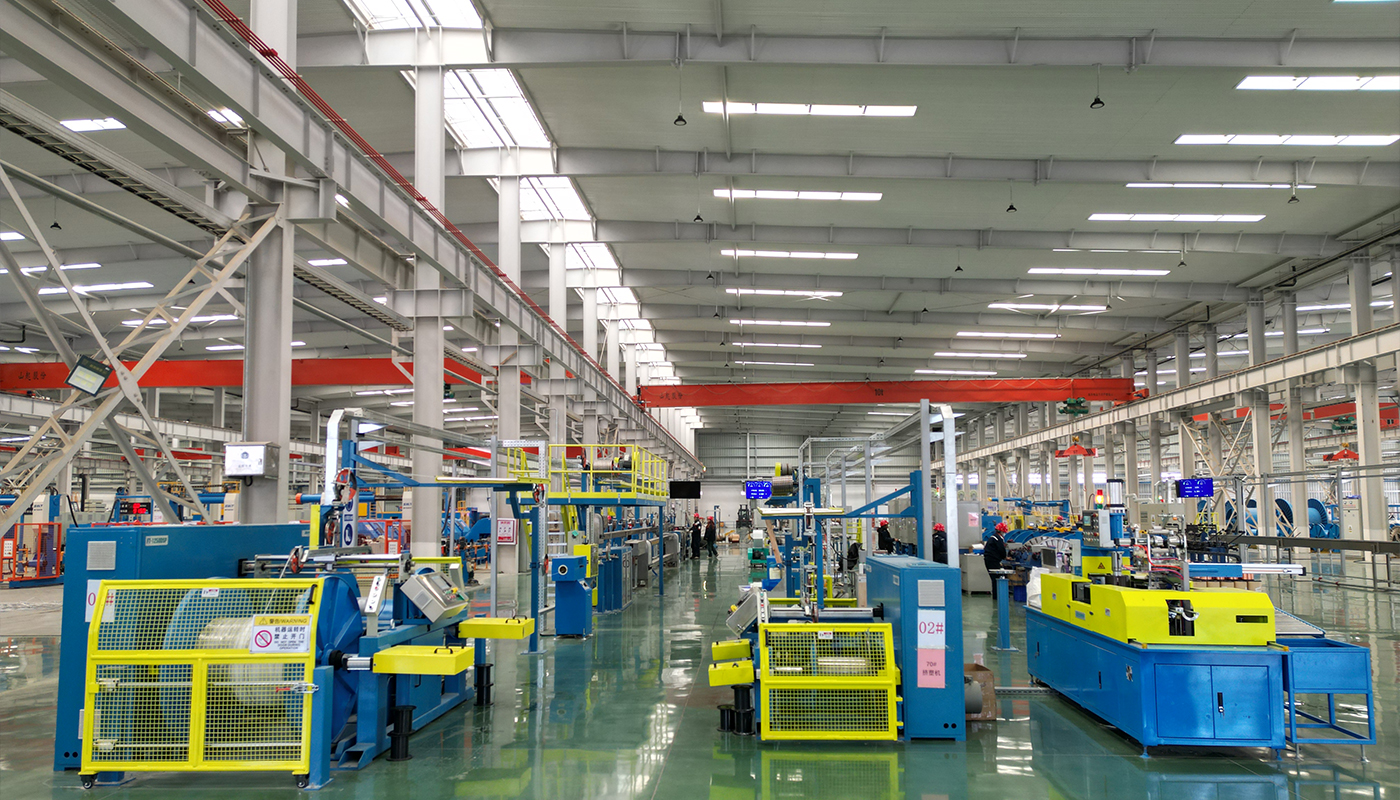

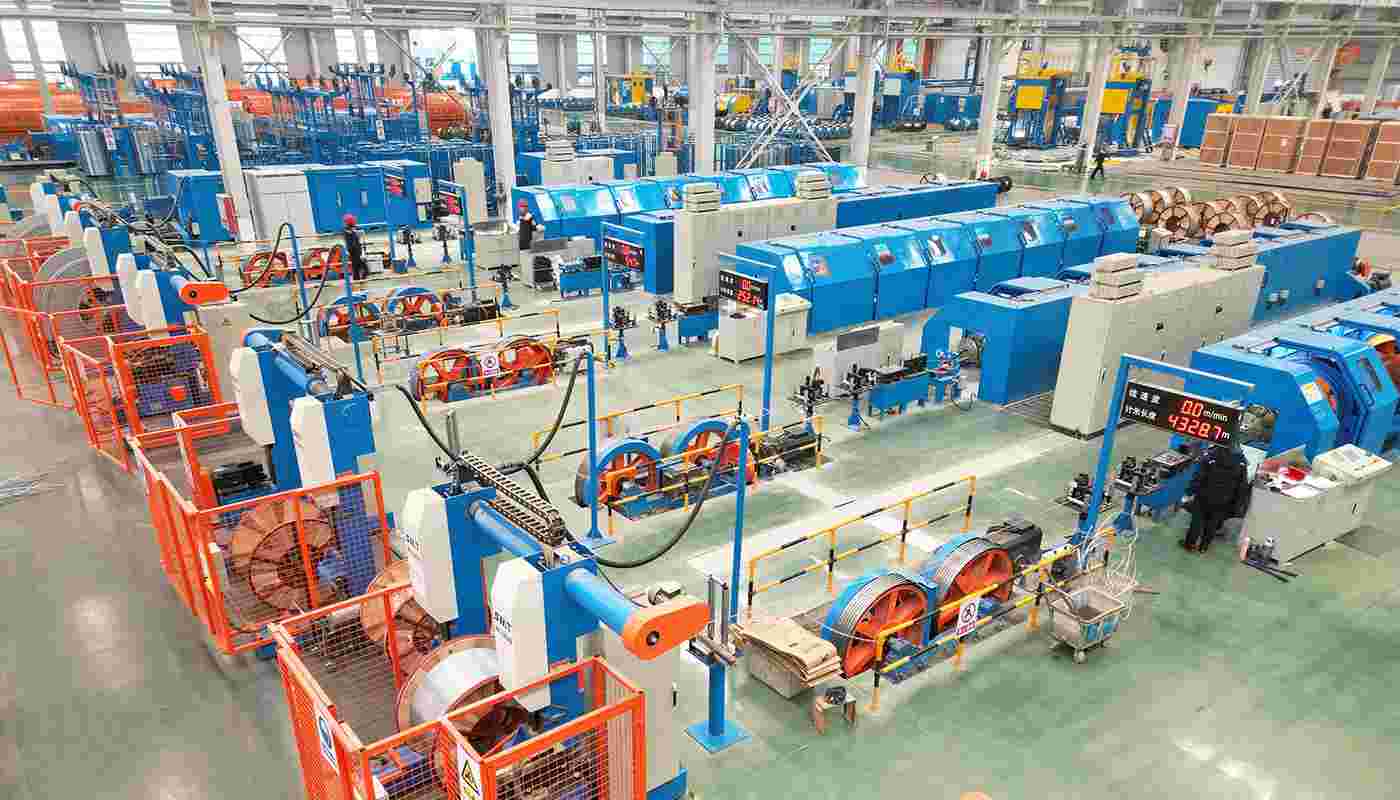

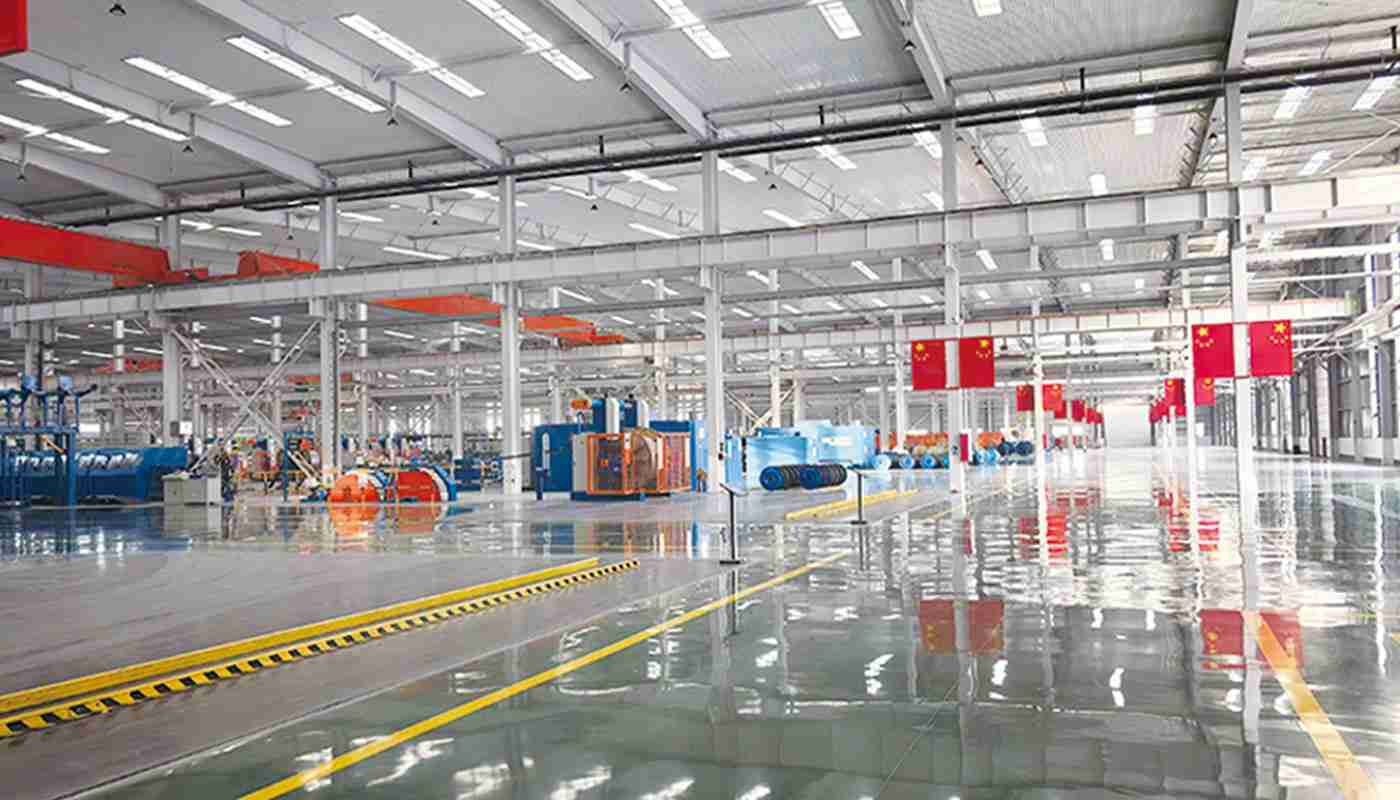

Factory Tour

Why choose us?

Professional

20+ years cable export experience, with full knowledges of all kinds STANDARDS, we have EN/ES/FR sales for deep communications.

Professional

20+ years cable export experience, with full knowledges of all kinds STANDARDS, we have EN/ES/FR sales for deep communications.

Fast Delivery

Our factory has sufficient capacity, and we can generally complete production for most orders within 2 ~ 3 weeks, maximum 1 ~ 1.5 months.

Fast Delivery

Our factory has sufficient capacity, and we can generally complete production for most orders within 2 ~ 3 weeks, maximum 1 ~ 1.5 months.

Good Price

Relying on robust Chinese cable manufacturing supply chain enables us to maintain low costs, to offer competitive cable products to our customers.

Good Price

Relying on robust Chinese cable manufacturing supply chain enables us to maintain low costs, to offer competitive cable products to our customers.

High Quality

We have complete cable type tests and a quality inspection process, supporting customer or third-party quality acceptance to ensure we deliver high-quality products.

High Quality

We have complete cable type tests and a quality inspection process, supporting customer or third-party quality acceptance to ensure we deliver high-quality products.

FAQs

Who are we?

We are Manufacturer more than 21 years experience in Binzhou City, shangdong, China. We start from 2004, sell to Domestic Market(52.00%), Eastern Asia(25.00%), Africa(10.00%), Mid East(6.00%),Southeast Asia(4.00%),South Asia(3.00%). There are total about 301-500 people in our office.

How can we guarantee quality?

Always a pre-production sample before mass production; Always have strict control of the quality from the raw material to finished products according to ISO9001 QC system before shipment.

What can you buy from us?

House eletric wire, Anti-aging wire, Solar PV cable, Control cable, Shielded computer cable, Low/Medium/High Voltage power cable, Aluminum alloy cable, Aerial insulated cable, Steel core aluminum standed wire, LSZH cable, Fireproof cable, Wind power cable, EV charging cable, Energy storage cable, Mining cable, etc.

Why should you buy from us not from other suppliers?

hengwang cable company has passed ISO9001 quality management system, ISO14001 environmental management system, ISO45001\German TUV certification\CE certification, the company is a finalist for the state power grid and a national”High-tech Enterprise.

What services can we provide?

Accepted Delivery Terms: FOB,CFR,EXW,FAS,DDP； Accepted Payment Currency:USD,EUR,CAD,AUD,GBP,CNY; Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,Western Union,Cash; Language Spoken:English,Chinese,Japanese,German,Russian

If I need customize Packing Cartons, is that available?

Yes, we have production line for packing box and cartons. we can make it according to your special requirement. If you are interested in our goods , please kindly send an inquiry to us !
