E-YCY Cable

Category: Low & Medium Voltage Cable Tag: Power Cables 0.6/1 KV PVC and PE Insulated

Minimum Order Quantity: 2KM;
Payment Type: T/T, L/C, MoneyGram, Credit Card, Western Union, Cash;
Shipping: Shipping fee and delivery date to be negotiated. Chat with supplier now for more details;
Secure Payments: Every payment you make is secured with strict SSL encryption and PCI DSS data protection protocols;
Delivery Terms: FOB, CFR, EXW, FAS, DDP；
Payment Currency: USD, EUR, CAD, AUD, GBP, CNY

Product Description

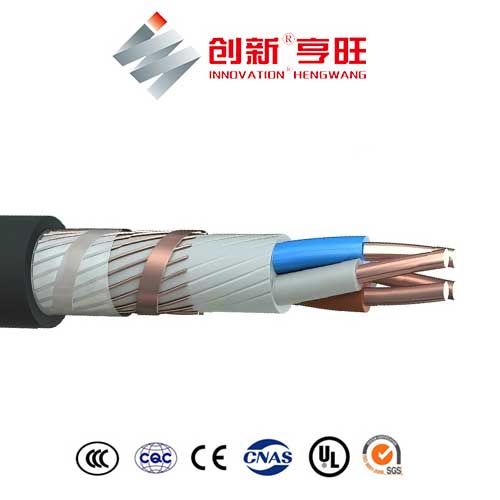

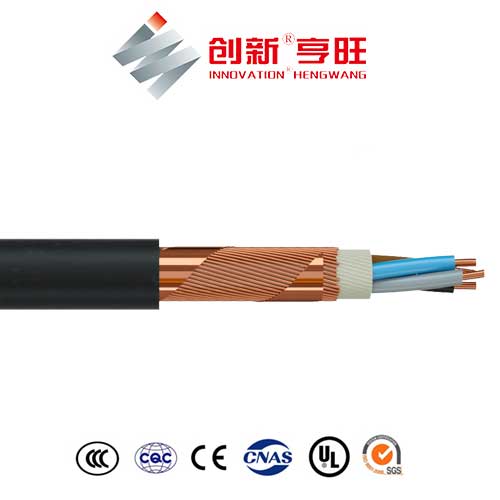

E-YCY Cable| PVC Insulated Cable with Concentric Conductor Screen Cross Section 16 mm²

E-YCY Cable Application

In dry, humid and wet locations, cable ducts, outdoors, underground and in water.

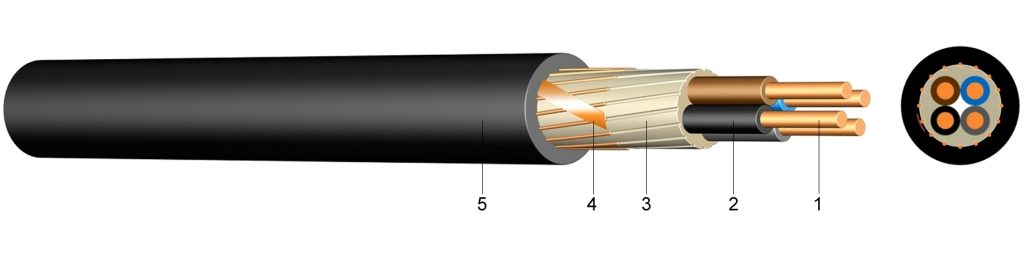

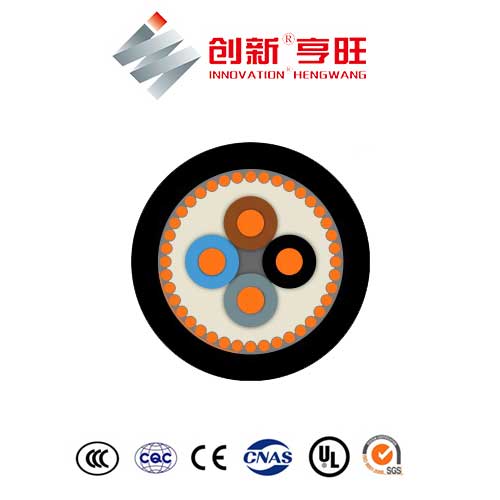

E-YCY Cable Construction

1…..solid (RE) or stranded (RM/SM) bare copper

2…..core insulation of polyvinylchloride (PVC)
3…..PVC core covering or taping
4…..concentric conductor of copper wires and copper tape
5…..outer sheath of polyvinylchloride (PVC), black

E-YCY Cable Standards

DIN VDE 0276-603 DIN EN 60228 class 1 (construction) HD 308 S2 (core identification)

E-YCY Cable Technical data

Nominal voltage Uo/U		[V]	600 / 1000 Volt
Test voltage		[V]_AC	4000
Temperature range	in motion		– 5°C till +70°C
	fixed		-20°C till +70°C
Operating temperature	short circuit	°C	160
Short circuit time	max.	[sec]	5
Bending radius	one time / fixed	x diameter	12
Bending radius	in motion	x diameter	15
Flammability	standard		EN 60332-1-2

E-YCY Cable Specifications

Number of cores and nominal cross section mm²	Copper figure kg/km	Overall diameter appr. mm	Weight appr. kg / km	Current carrying capacity ground A	Current carrying capacity air A
4 x 1,5 RE/ 16	240,00	15	260	26	18
7 x 1,5 RE/ 16	283,20	17	540	*	*
10 x 1,5 RE/ 16	326,40	20	660	*	*
12 x 1,5 RE/ 16	355,20	20	700	*	*
14 x 1,5 RE/ 16	384,00	21	750	*	*
19 x 1,5 RE/ 16	456,00	23	900	*	*
24 x 1,5 RE/ 16	528,00	27	1.110	*	*
30 x 1,5 RE/ 16	614,40	28	1.260	*	*
3 x 2,5 RE/ 16	228,48	14	459	27	19
4 x 2,5 RE/ 16	278,40	16	330	34	25
5 x 2,5 RE/ 16	302,40	17	580	*	*
7 x 2,5 RE/ 16	350,40	18	630	*	*
10 x 2,5 RE/ 16	422,40	21	800	*	*
12 x 2,5 RE/ 16	470,40	22	890	*	*
14 x 2,5 RE/ 16	518,40	23	980	*	*
19 x 2,5 RE/ 16	638,40	26	1.180	*	*
24 x 2,5 RE/ 16	758,40	29	1.450	*	*
Number of cores and nominal cross section mm²	Copper figure kg/km	Overall diameter appr. mm	Weight appr. kg / km	Current carrying capacity ground A	Current carrying capacity air A
30 x 2,5 RE/ 16	902,40	30	1.630	*	*
2 x 4 RE/ 16	259,20	16	510	44	34
4 x 4 RE/ 16	336,00	18	630	44	34
5 x 4 RE/ 16	374,40	19	730	*	*
7 x 4 RE/ 16	451,20	24	950	*	*
2 x 6 RE/ 16	299,52	17	580	56	43
4 x 6 RE/ 16	412,80	19	750	56	43
5 x 6 RE/ 16	470,40	21	860	*	*
4 x 10 RE/ 16	566,40	22	970	75	60
5 x 10 RM/ 16	662,40	25	1.200	*	*
5 x 16 RM/ 16	950,40	27	1.475	*	*

* The current carrying capacity of the cables depends on the number of cores loaded (see DIN VDE 0276-627)
