Product Description

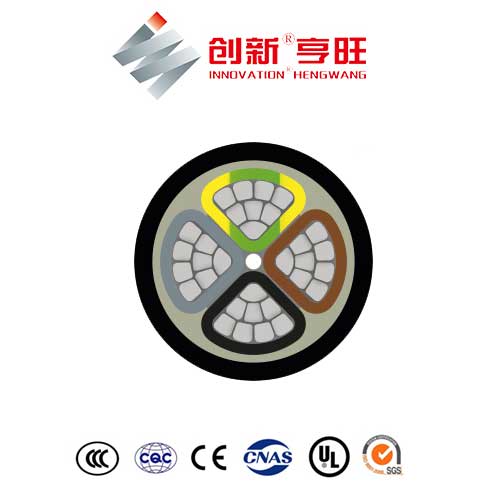

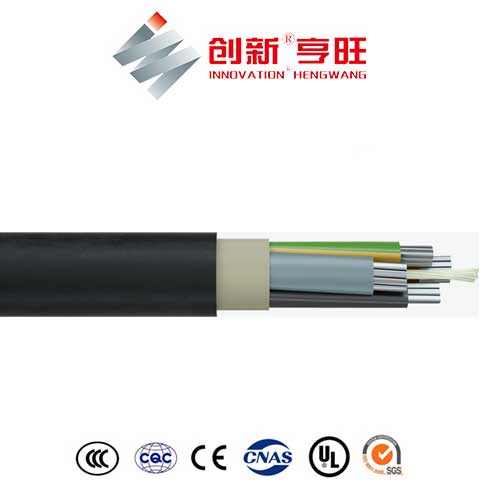

E-AYY Cable | PVC Insulated Cable with Aluminium Conductor
E-AYY Cable Application
This power cable is suitable for fixed installations, preferably in cable ducts, indoors, outdoors, in water or underground if no mechanical damage is to be expected.

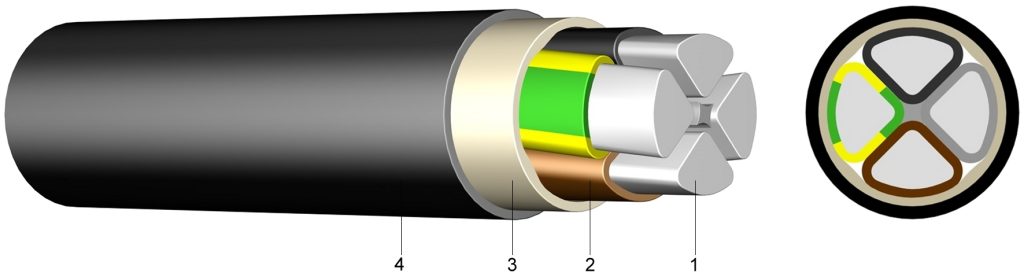

E-AYY Cable Construction
1…..solid (SE) or stranded (RM/SM) aluminium wires
2…..core insulation of polyvinylchloride (PVC)
3…..PVC core covering or taping
4…..outer sheath of polyvinylchloride (PVC), black, UV-resistant
E-AYY Cable Information
short circuit temperature at core (max. 5 sec.) < =300mm² –> 160°C > 300mm² –> 140°C
E-AYY Cable Standards
ÖVE K 23 and K 603 HD 603 S1 DIN EN 60228 class 1 and 2 (construction) HD 308 S2 (core identification)
E-AYY Cable Technical data
| Nominal voltage Uo/U | [V] | 600 / 1000 Volt | |
| Test voltage | [V]AC | 4000 | |
| Temperature range | in motion | – 5°C till +70°C | |
| fixed | -20°C till +70°C | ||
| Bending radius | single-core style | x diameter | 15 |
| multi-core style | x diameter | 12 | |
| Flammability | standard | EN 60332-1-2 |
E-AYY Cable Specifications
| Number of cores and nominal cross section mm² | Aluminium
figure kg/km |
Overall diameter
appr. mm |
Weight appr. kg / km | Current carrying
capacity ground A |
Current carrying
capacity air A |
| 1 x 25 RM | 74 | 11 | 174 | 106 | 87 |
| 1 x 35 RM | 103 | 12 | 209 | 127 | 107 |
| 1 x 50 RM | 147 | 14 | 282 | 151 | 131 |
| 1 x 70 RM | 206 | 16 | 363 | 185 | 166 |
| 1 x 95 RM | 279 | 18 | 520 | 222 | 205 |
| 1 x 120 RM | 353 | 19 | 557 | 253 | 239 |
| 1 x 150 RM | 441 | 21 | 674 | 284 | 273 |
| 1 x 185 RM | 544 | 24 | 826 | 322 | 317 |
| 1 x 240 RM | 706 | 26 | 1.052 | 375 | 378 |
| 1 x 300 RM | 882 | 29 | 1.282 | 425 | 437 |
| 1 x 400 RM | 1.200 | 32 | 1.598 | 487 | 513 |
| 1 x 500 RM | 1.510 | 36 | 2.022 | 558 | 600 |
| 1 x 630 RM | 1.900 | 40 | 2.200 | 635 | 701 |
| 3 x 240/120 SM | 2.470 | 55 | 4.215 | 364 | 338 |
| Number of cores and nominal cross section mm² | Aluminium figure kg/km | Overall diameter appr. mm | Weight appr. kg / km | Current carrying capacity ground A | Current carrying capacity air A |
| 4 x 150 SE | 1.764 | 45 | 2.594 | 275 | 246 |
| 4 x 25 RM | 294 | 25 | 887 | 102 | 82 |
| 4 x 35 SM | 412 | 26 | 796 | 123 | 100 |
| 4 x 50 SM | 588 | 27 | 1.017 | 144 | 119 |
| 4 x 70 SM | 823 | 30 | 1.312 | 179 | 152 |
| 4 x 95 SM | 1.117 | 34 | 1.698 | 215 | 186 |
| 4 x 120 SM | 1.411 | 40 | 2.459 | 245 | 216 |
| 4 x 150 SM | 1.764 | 43 | 2.594 | 275 | 246 |
| 4 x 185 SM | 2.176 | 50 | 3.777 | 313 | 285 |
| 4 x 240 SM | 2.822 | 54 | 4.106 | 364 | 338 |
| 5 x 16 RM | 235 | 22 | 675 | ||
| 5 x 25 RM | 368 | 26 | 1.018 | 102 | 81 |
| 5 x 35 RM | 515 | 30 | 1.316 | 121 | 99 |
| 5 x 50 SM | 735 | 32 | 1.549 | 144 | 119 |
| 5 x 70 SM | 1.071 | 37 | 2.021 | 179 | 152 |
| 5 x 95 SM | 1.484 | 41 | 2.598 | 215 | 186 |
| 5 x 120 SM | 1.764 | 47 | 3.201 | 245 | 216 |
| 5 x 150 RM | 2.218 | 56 | 4.300 | 275 | 246 |
| 5 x 185 RM | 2.736 | 62 | 5.350 | 313 | 285 |
| 5 x 240 RM | 3.530 | 71 | 7.580 | 364 | 338 |
